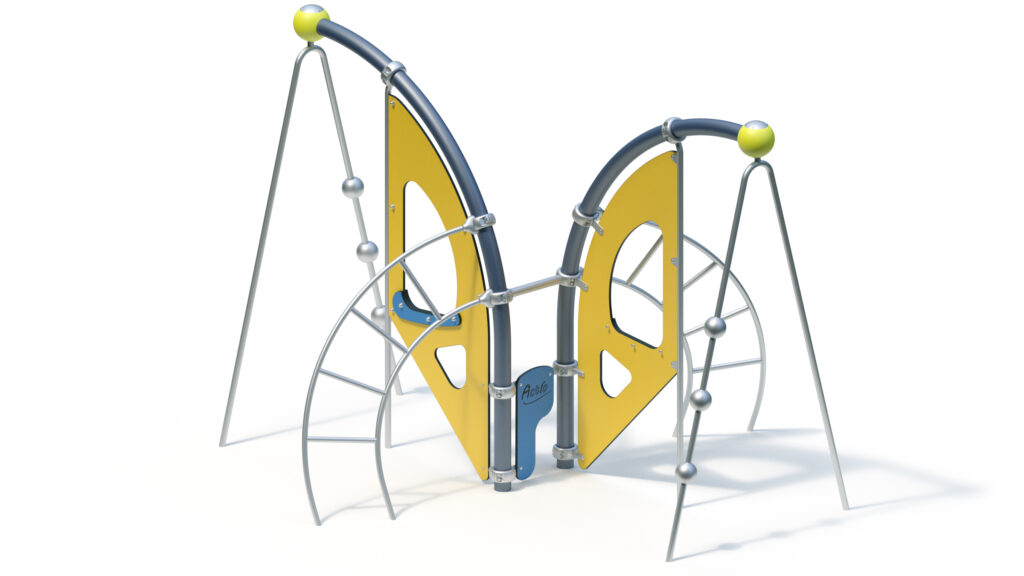

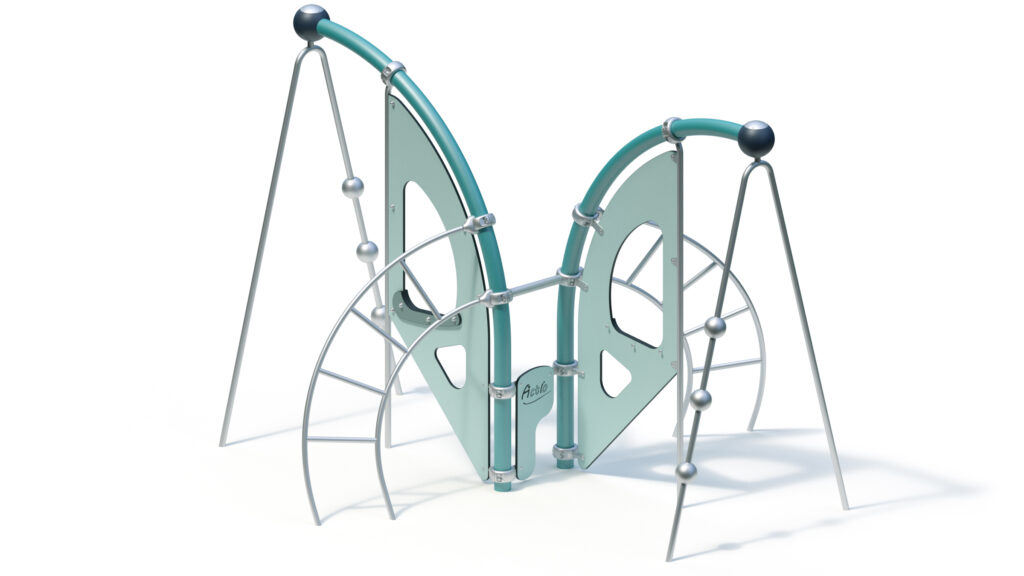

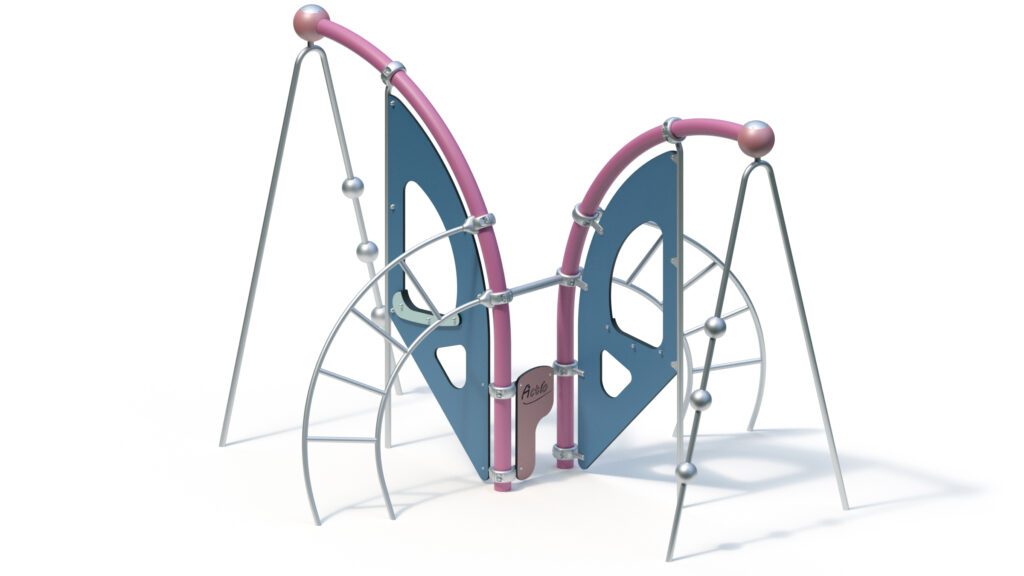

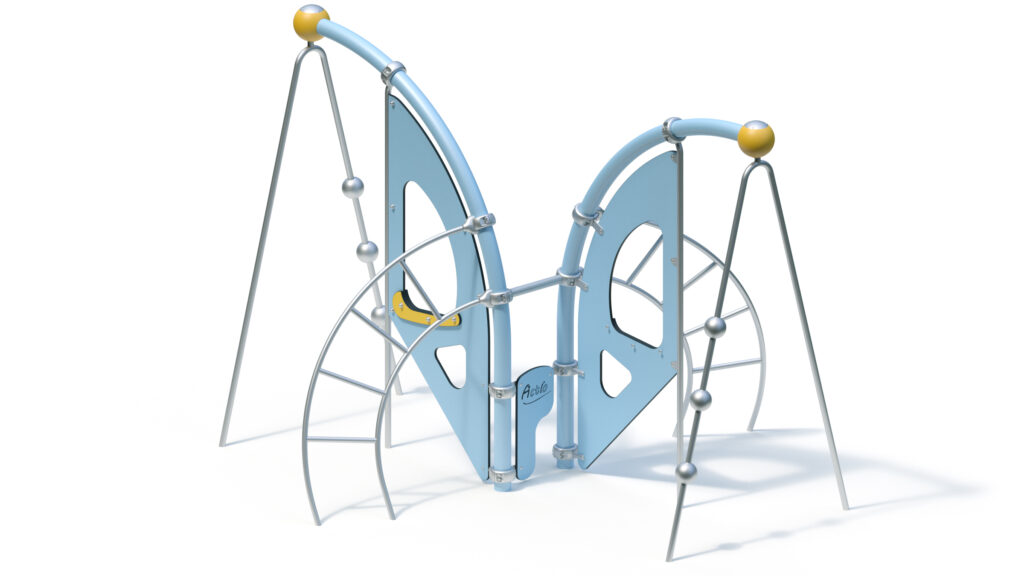

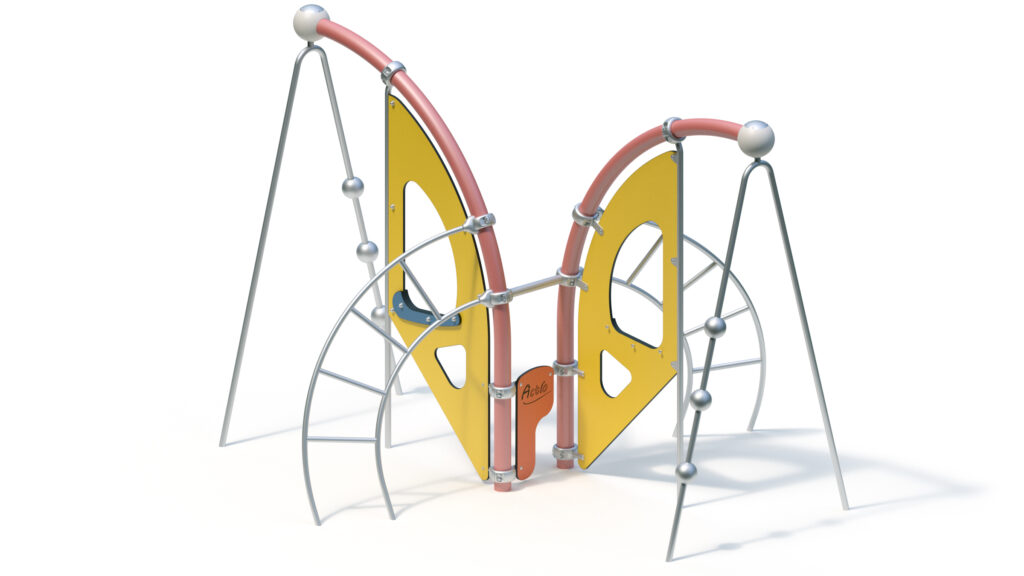

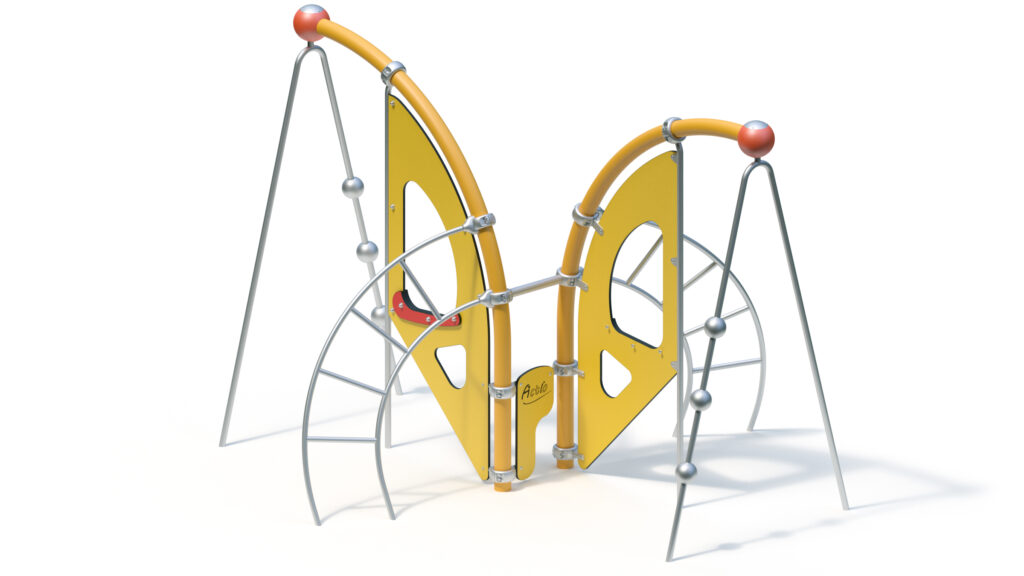

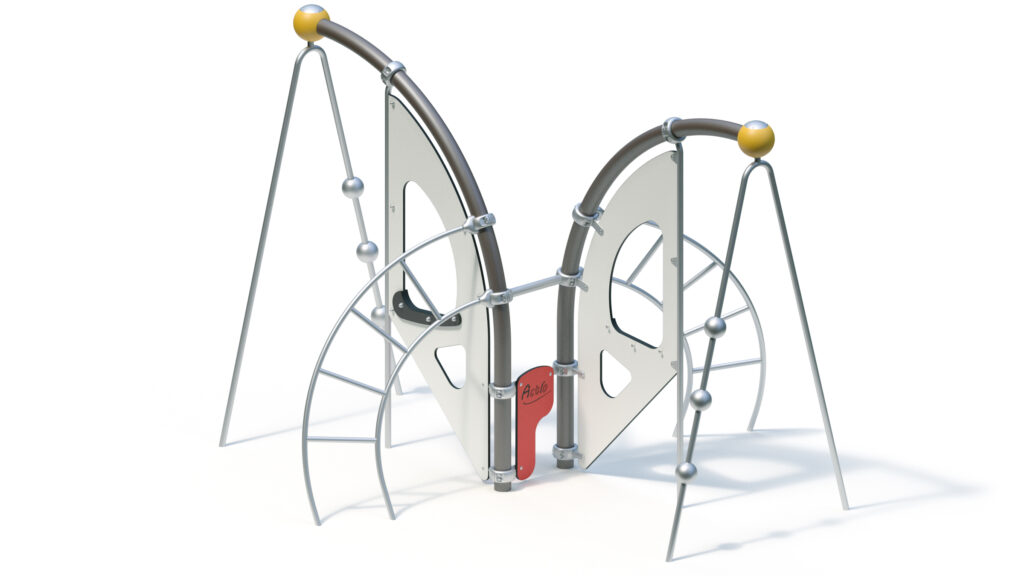

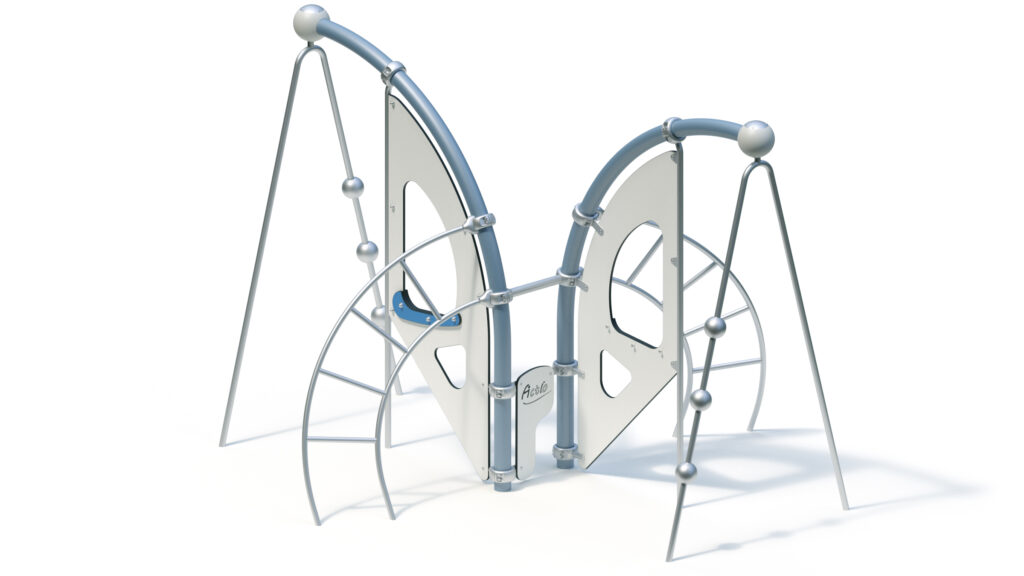

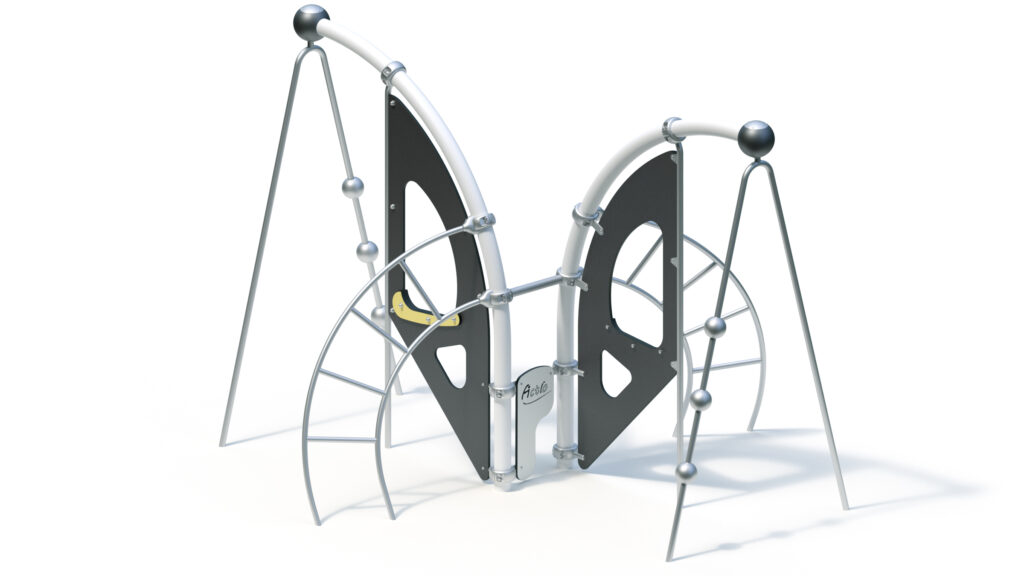

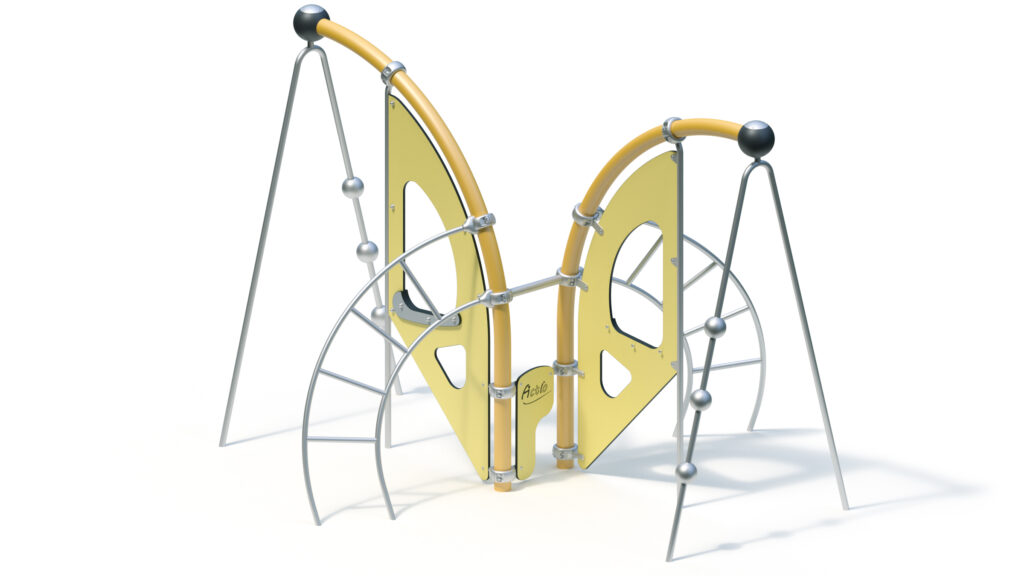

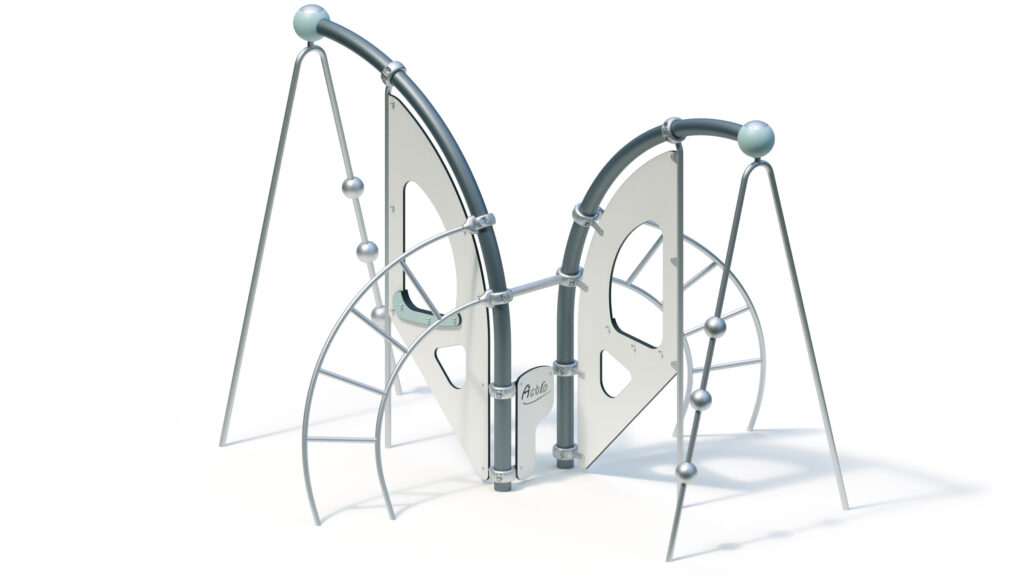

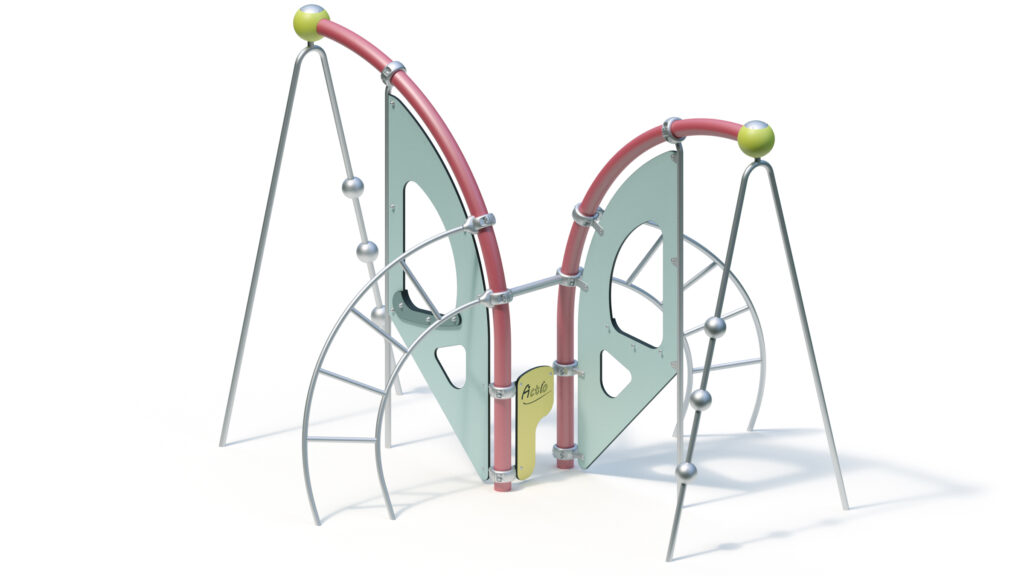

Technical data
Space occupied by equipment: 4,00 x 3,46 x 2,93 m
Minimum space: 8,35 x 6,46 x 2,93 m
Impact area: 40 m²
Total height: 2,93 m
Free height of fall: 2,86 m
Weight: 67 kg heaviest single piece
371 kg as a whole
Arc 90°
– bent tube from hot-dip galvanised steel, Ø 114 x 3,6 mm (powder coating on choice, according to RAL colour chart)
– sphere from aluminium, Ø 250 mm, powder coating on choice, according to RAL colour chart (see below-mentioned positions)
Chill Wall
– climbing wall made from a coloured highly weather-resistant HPL panel (20 mm thickness) in red similar to RAL 2002
– top: screw-type connection to Actio structural element by means of an aluminium clamp (powder coating on choice, according to RAL colour chart) and a welded construction from stainless steel tubes Ø 38
– bottom: embedding in cast-in-place concrete
Climbing Pipe
– welded construction from a stainless steel tube Ø 38 mm with three stainless steel balls Ø150 mm
– top: screw-type connection to Actio structural element
– bottom: embedding in cast-in-place concrete
Actio panel
– coloured highly weather-resistant HPL panel (20 mm thickness) including labelling “Actio”, red similar to RAL 2002
– connection by means of clamps from aluminium (powder coating on choice, according to RAL colour chart)
Bow Ladder
– welded, helical construction from stainless steel tubes Ø 38 mm
– bow-shaped, skewed ladder
– top: screw-type connection to Actio structural element by means of aluminium clamps (powder coating on choice, according to RAL colour chart)
– bottom: embedding in cast-in-place concrete
Foundations (on site)
1 pc. 1,70 x 1,00 x 0,50 m
2 pcs. 0,90 x 0,40 x 0,50 m
6 pcs. 0,60 x 0,60 x 0,50 m
concrete amount: 2,3 m³
Approximate assembly values
2 mechanics 4 hours each
(without creating foundations)
Appropriate for
children from the age of 6 years up,
public playgrounds etc.
physical activity
