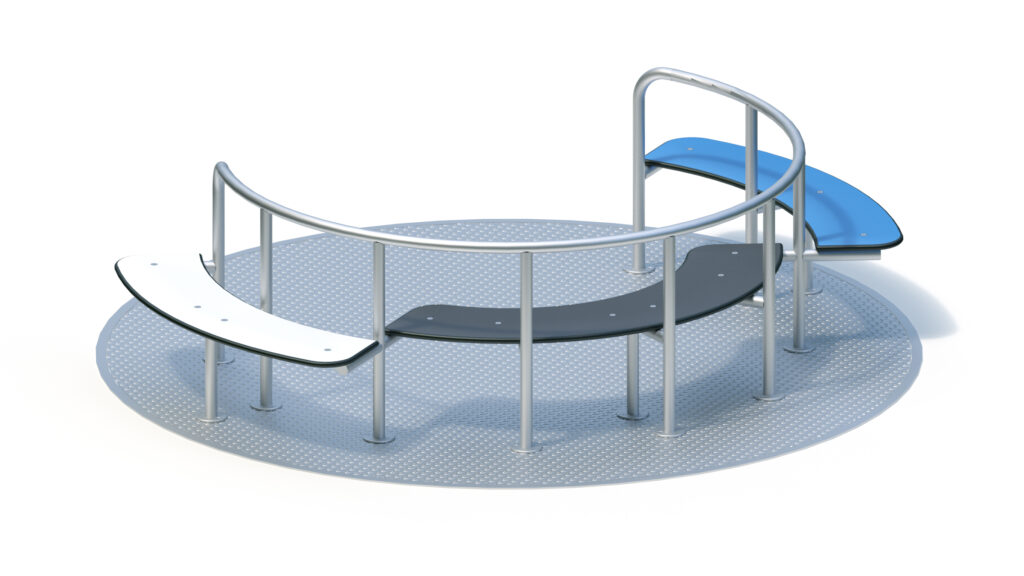

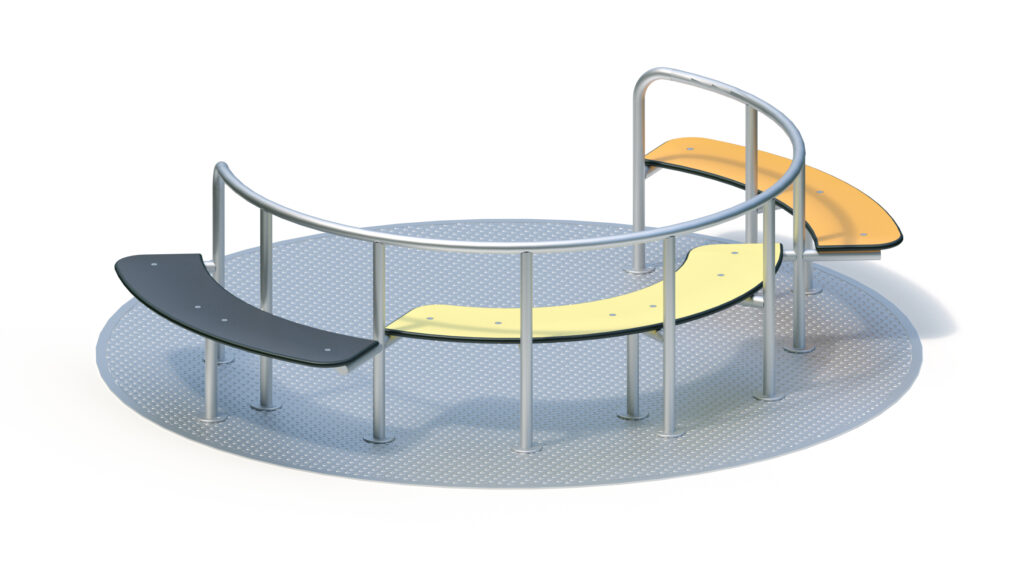

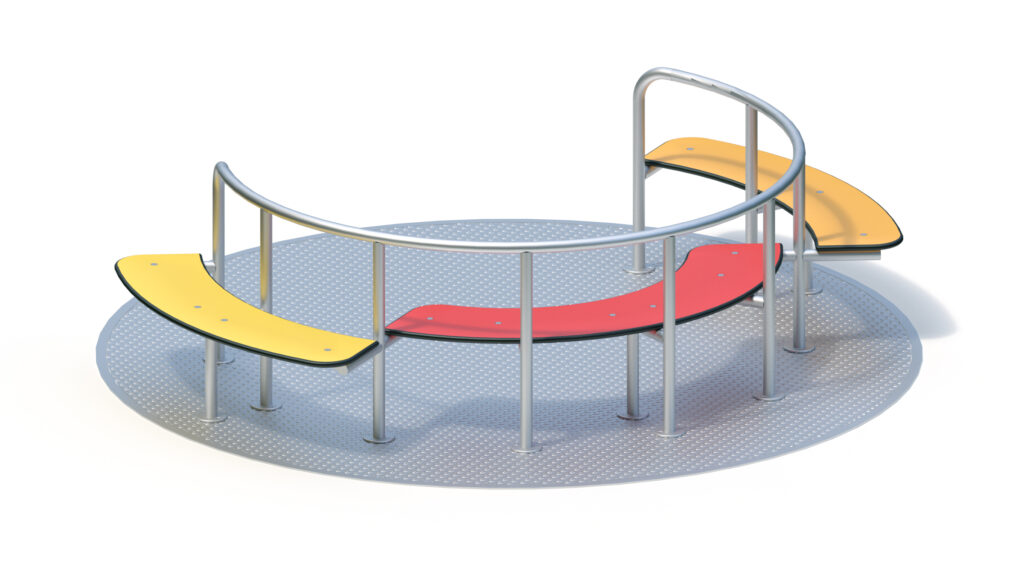

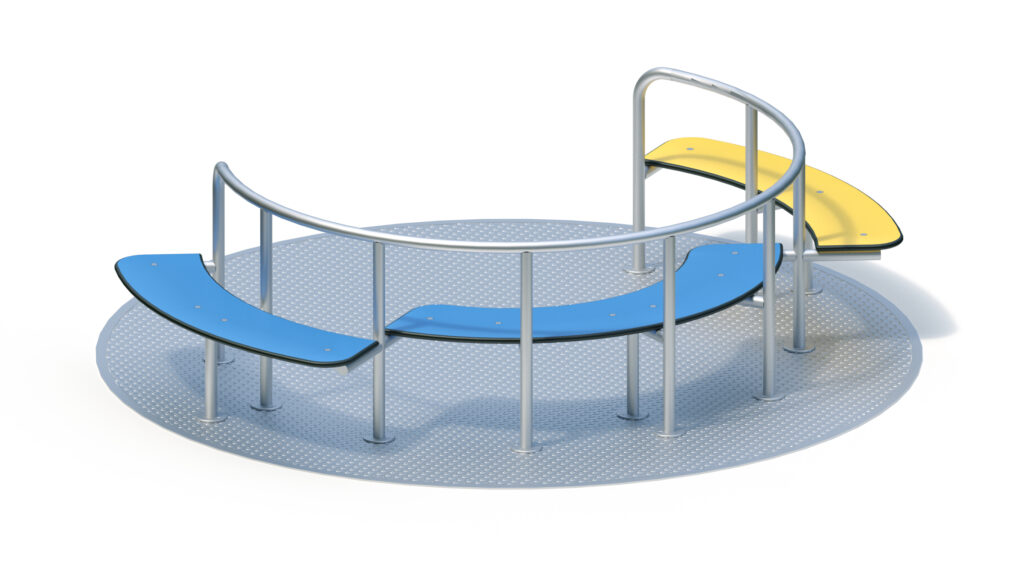

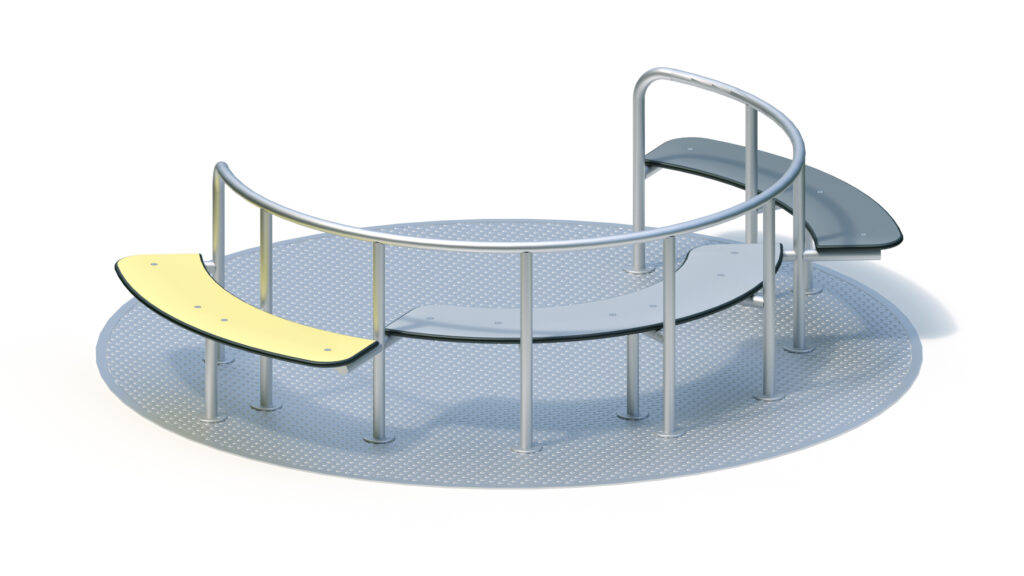

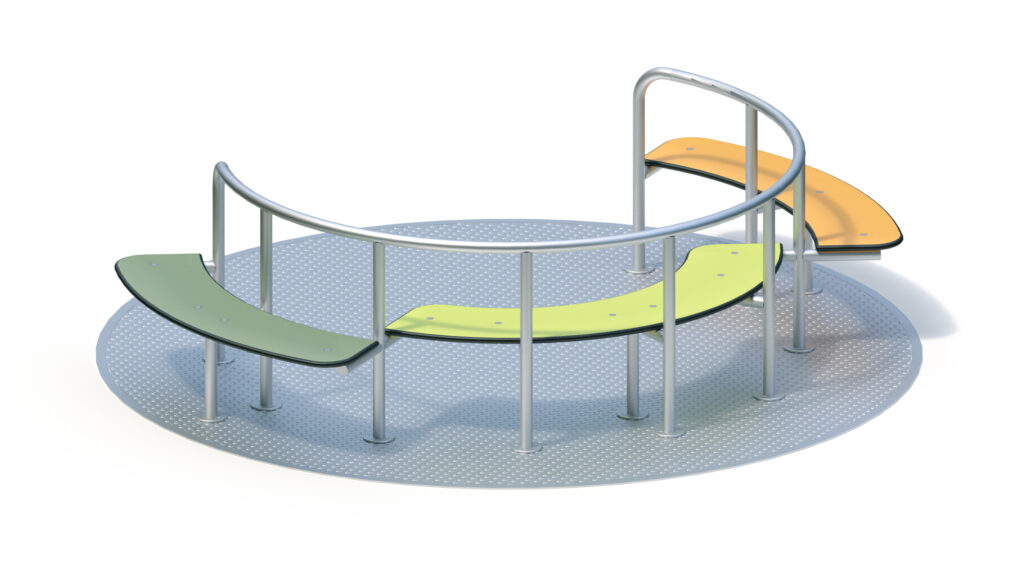

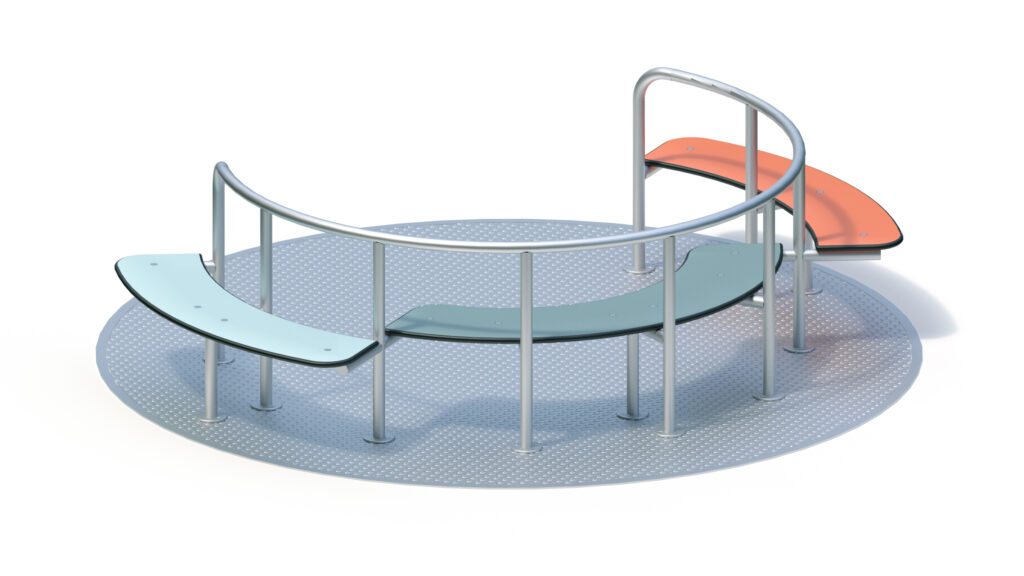

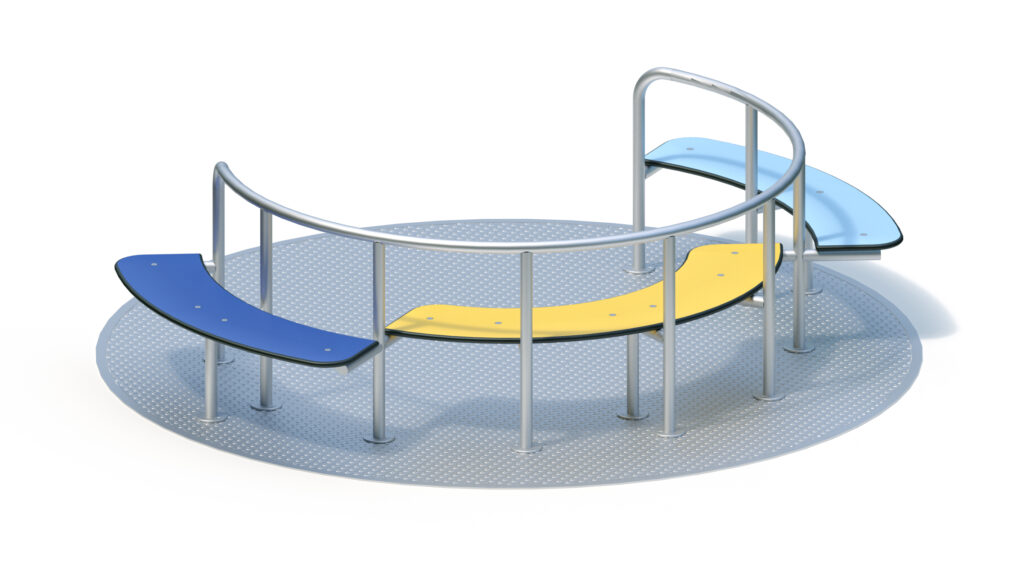

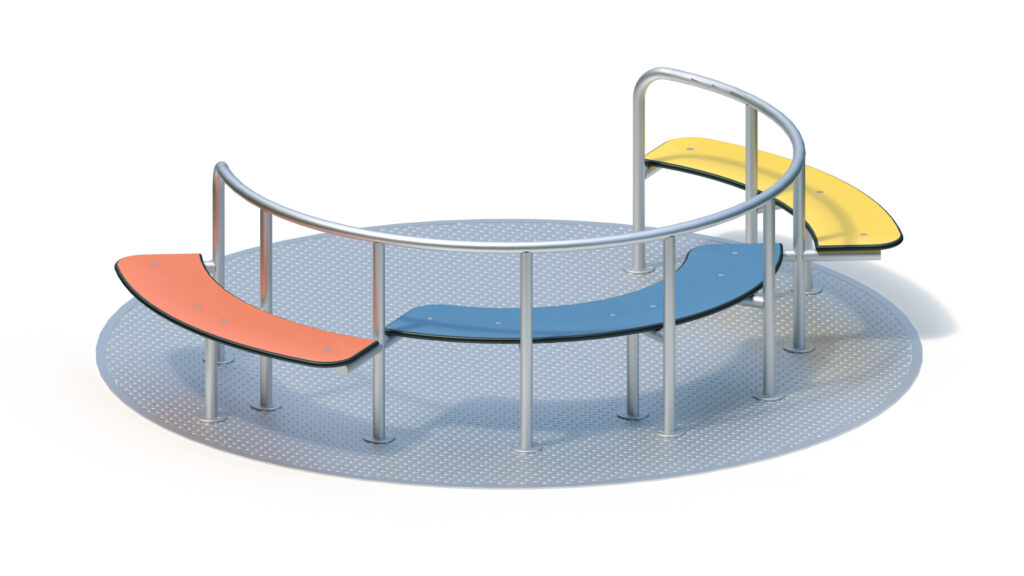

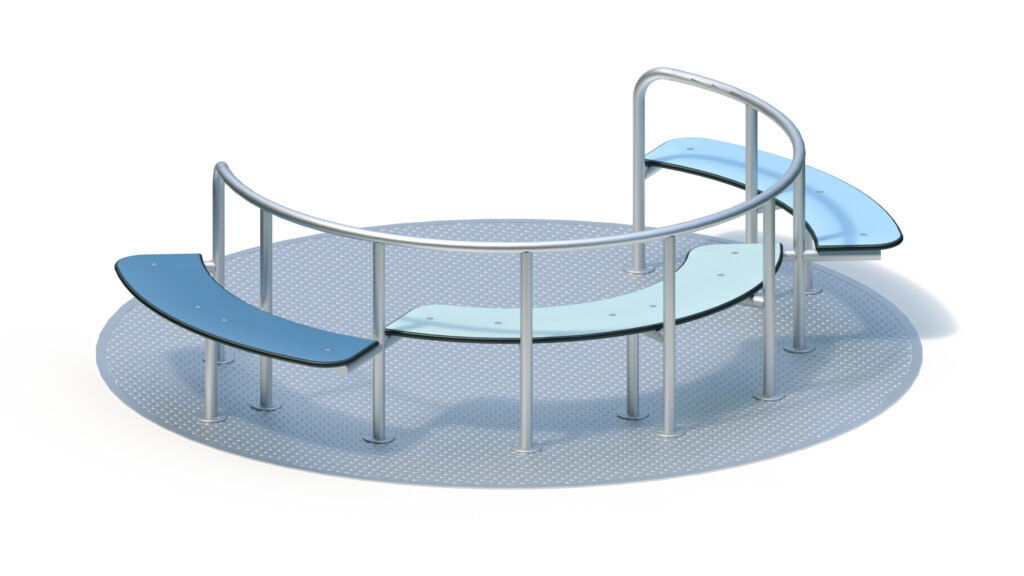

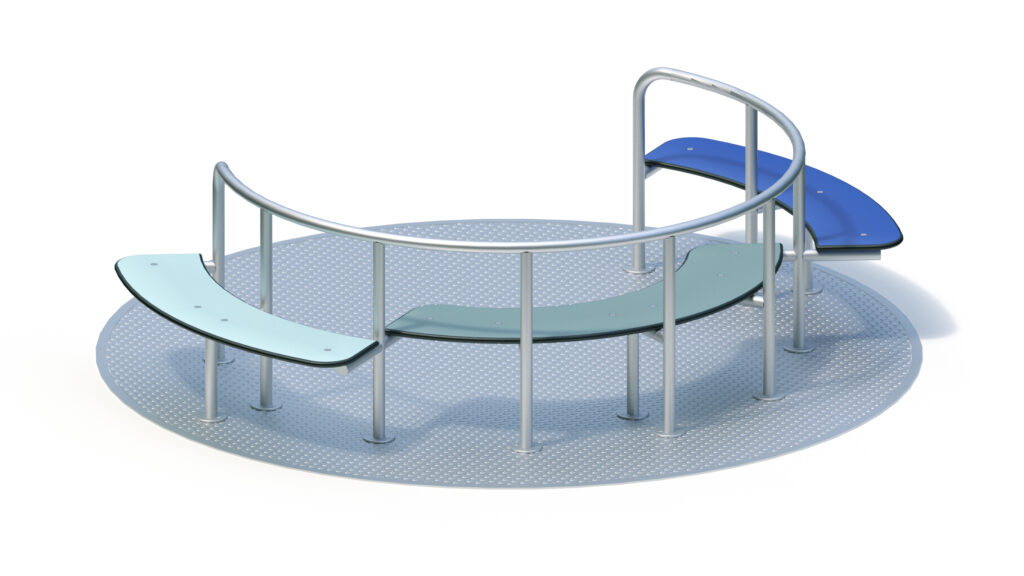

Inclusive carousel Ø 2,50 m with seats 0-43628-000

Beach

Sun

Sweden

City

Sky

Nature

Ocean

Pirate

Sunny Day

Aloha

Mermaid

Jungle

Coral

Ice Palace

Safari

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

✓

Total length ? The measurement indicating the length of the playground equipment.

2,56 m

Total width ? The measurement indicating the width of the playground equipment.

2,56 m

Total height ? The measurement indicating the height of the playground equipment.

0,68 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

6,56 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

5,65 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

0,68 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

2 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

535,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

535,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

No specification

Platform heights

Foundations

1 pc.

1,40 x 1,40 x 0,20 m
Volume: 0,39 m3

Age group ? The specific age group for which the product was developed.

4+
Number of users ? The number of individuals who can use the product simultaneously.

8
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Product groups ? The categories of similar products.

Carousels

Variants finder

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data:
Bade area: Ø 2,56 m
Minimum space: Ø 6,56 m (33,8 m²)
Total height: 0,82 m
Weight: 535 kg

Carousel with barrier-free, level access with seats
Rotating base and superstructure: profi led stainless steel sheet/stainless steel. Easily accessible maintenance opening for checking and cleaning the substructure if necessary.
Roller bearing: central cross-roller bearing, non-intrusive, dirt-protected, with an anti-corrosion coating with automatic lubricator (Renewal repuired annually).
.

Foundation (on-site)
1 pc. 1,40 x 1,40 x 0,20 m
Concrete amount: 0,36 m³

Alternative:
Pre-fabricated foundation Art.-Nr. 015994 (at extra charge)
1 pc. Ø 1,70 x 0,20 m
Weight: 900 kg

Approximate assembly values:
2 mechanics, 2 hour each
(without creating foundations)
+ lifting gear

Free fall height:
0,0 m

Please note:
The impact surface around the play equipment must have an appropriate level of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-5).
The access path should be suitable for use by wheelchair users.

Appropriate for:
Wheelchair user,
children from the age of 4 years up
public playgrounds etc.
physical activities
