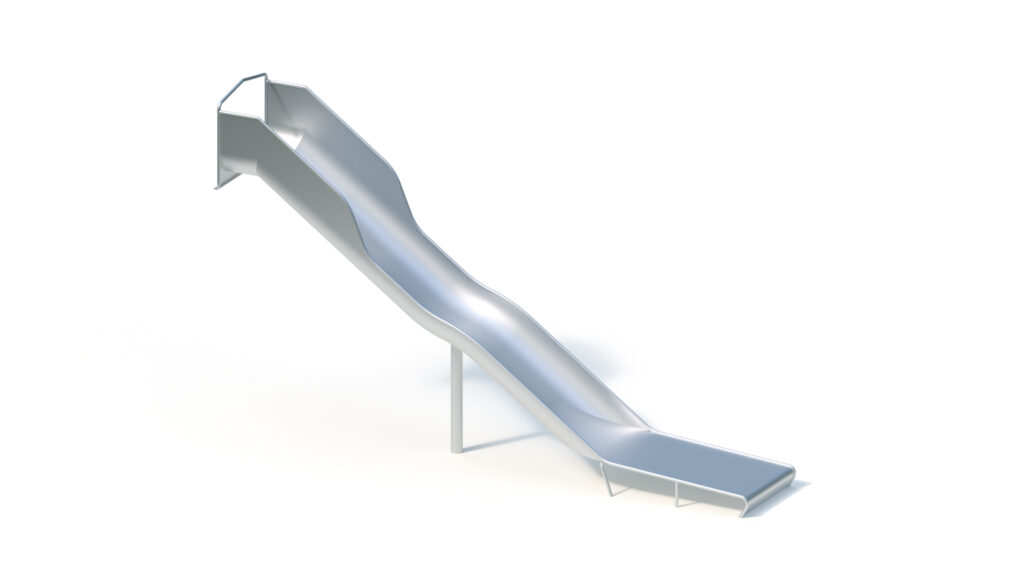

Wide slide (1,60 m) flange fastening

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

3,50 m

Total width ? The measurement indicating the width of the playground equipment.

1,10 m

Total height ? The measurement indicating the height of the playground equipment.

2,60 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

7,09 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

4,36 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

3,20 m

Assembly time ? The time required by qualified individuals to assemble the product.

No specification

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

145,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

145,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

1,70 m

Platform heights

-

Foundations

1 pc.

1,25 x 0,40 x 0,40 m
Volume: 0,20 m3

Age group ? The specific age group for which the product was developed.

3+
Number of users ? The number of individuals who can use the product simultaneously.

4
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

sliding, motion activity
Product groups ? The categories of similar products.

Flanged Wide Slides

This kaiser & kühne product enables:

Product downloads:

Technical data
Area: 1,10 x 3,50 m
Minimum space: 4,35 x 7,00 m
Installation height: 1,60 m
Height of slide entrance: 1,70 m
Slide must fixed directly (by means of rawlbolts or other hard surface anchors) to an existing concrete/hard surface.
Angle of chute: 36°
Width of chute: 1,10 m
Thickness of sliding sheet metal: 2,5 mm
One-piece stainless steel structure with additional support for chute runout. Low noise due to trough shape.
Weight: 145 kg total

Foundations (on site)
1 pcs 0,40 x 1,25 x 0,40 m

Installation time
Is delivered in one piece

free falling height
max. 1,70 m

Designed for
children from 3 years

Flanged Wide Slides
