Water basin (0,50) - Kaiser & Kühne

Number of users ? The number of individuals who can use the product simultaneously.

0
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Product groups ? The categories of similar products.

Water Play Equipment, Water Play Equipment

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

1,00 m

Total width ? The measurement indicating the width of the playground equipment.

0,84 m

Total height ? The measurement indicating the height of the playground equipment.

0,65 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

4,00 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

3,84 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

0,65 m

Assembly time ? The time required by qualified individuals to assemble the product.

No specification

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

No specification

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

55,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

0,51 m

Platform heights

-

Product downloads:

Technical Data
Base area: 0,84 x 1,00 m
Total height: 0,65 m
Weight: 55 kg as a whole

Welded stainless steel construction with one discharge drilling. Sheet metal thickness: min. 2 mm / tube Ø 38 mm. Anchorage by means of ring-shaped bottom flange.
At extra charge, there are appropriate ring-shaped concrete foundations (015165) for flange fastening and concrete form blocks (015170) for masonry works to compensate different levels or for a safe installation with loose fall protection surfacing (sand, gravel etc.)

Free height of fall
0,50 m

Water Play Equipment

Water basin (0,50) 0-33431-000

Product downloads:

For more information please contact us

Water Play Equipment

Product downloads:

For more information please contact us

Related products:

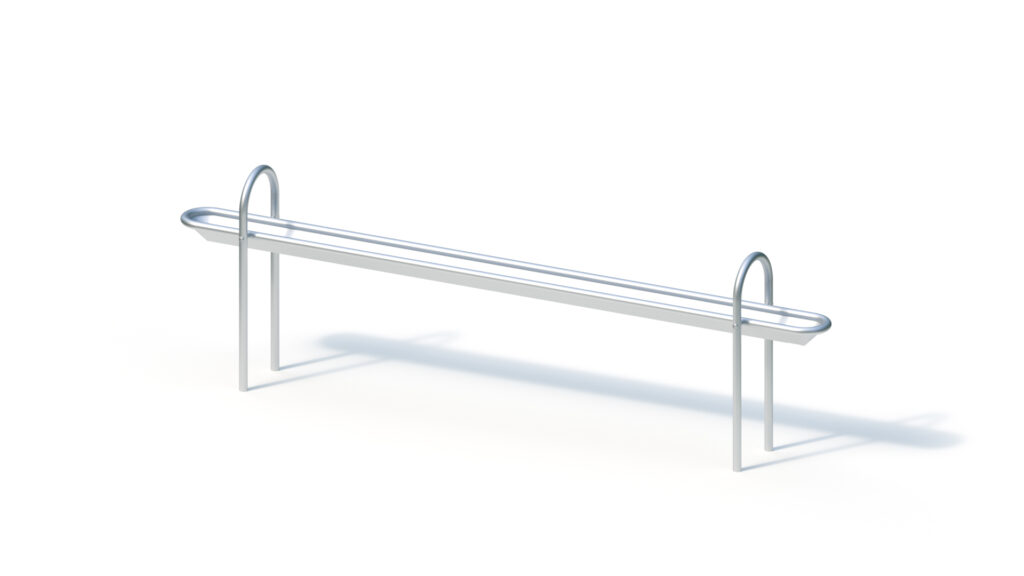

Water trough (2,40) 0-33254-000

Water basin (0,25) 0-33430-000

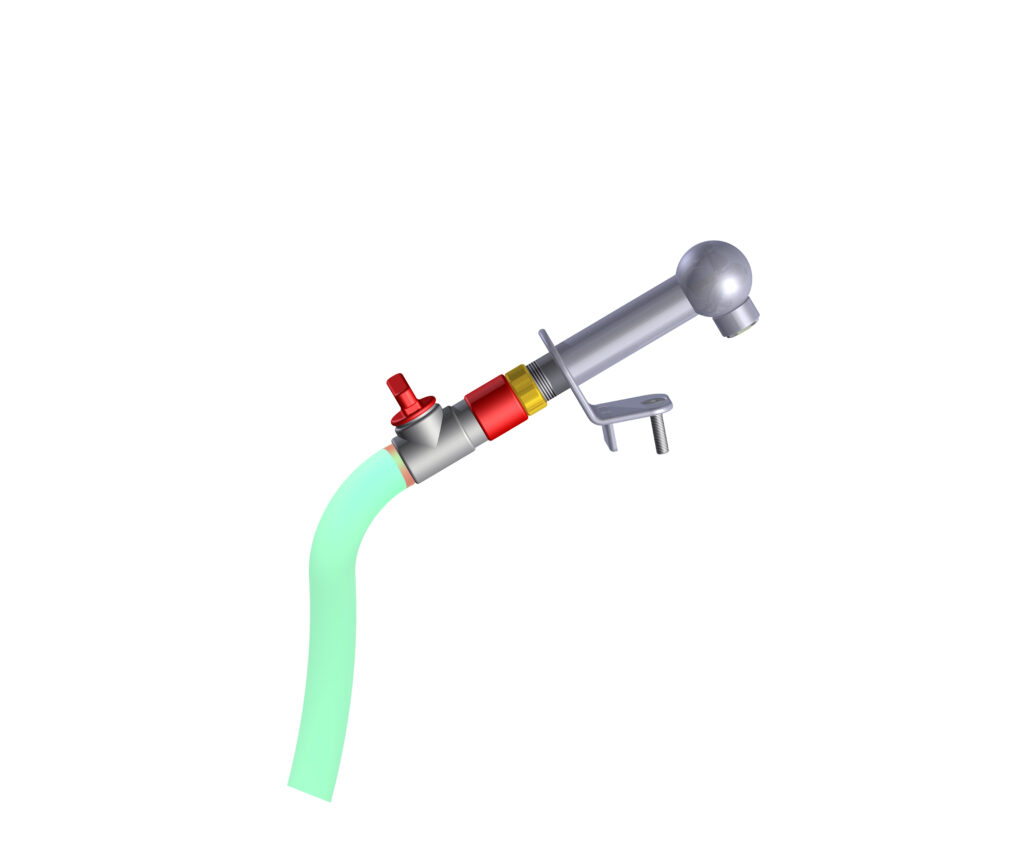

Gargoyle (for tubes with Ø 33,7 mm) 0-33124-000
