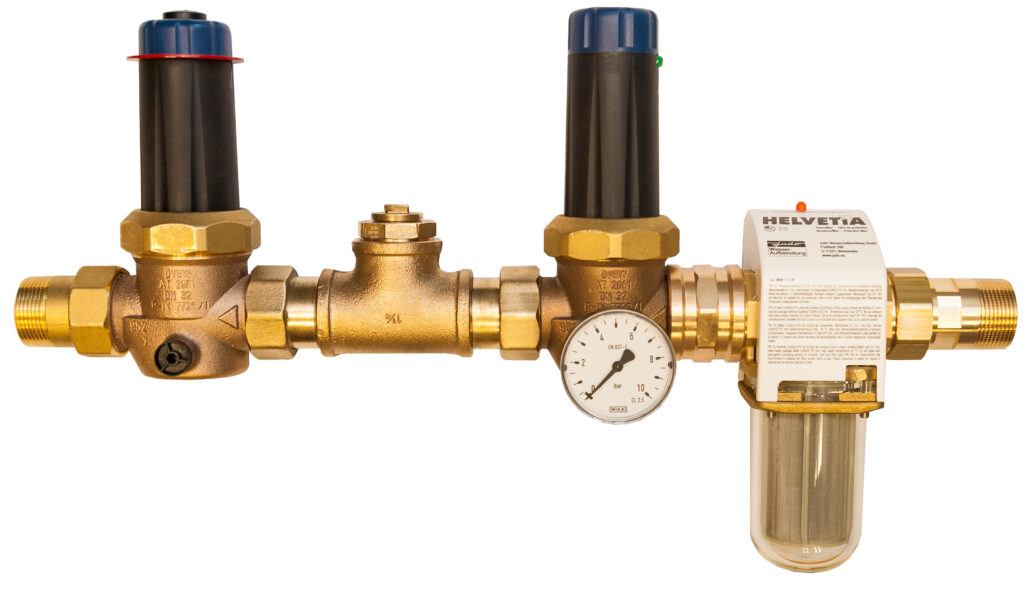

Valve combination with hygienic flush

Number of users ? The number of individuals who can use the product simultaneously.

0
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Product groups ? The categories of similar products.

Water - Accessories, Water - Accessories

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

0,70 m

Total width ? The measurement indicating the width of the playground equipment.

0,15 m

Total height ? The measurement indicating the height of the playground equipment.

0,63 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

No specification

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

No specification

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

No specification

Assembly time ? The time required by qualified individuals to assemble the product.

No specification

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

12,20 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

12,20 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

No specification

Platform heights

-

Classic

Variants finder

Classic

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

Product downloads:

Weight: 13 kg as a whole

Device for direct connection of the water pump to a pressurised water supply, with integrated fine filter for water purification to prevent a malfunction due to polluted membrane valves.

Hygienic flushing included: device for automatical flushing of the line section between valve combination and water pump with time control and check valve, dimensioned for flushing max. 30 m DN 40. Control unit consisting of control module, watertight sealed 6V battery. Factory default for flushing is preset to a 12 hour time interval.

Assembly and installation must be carried out by a qualified company.
