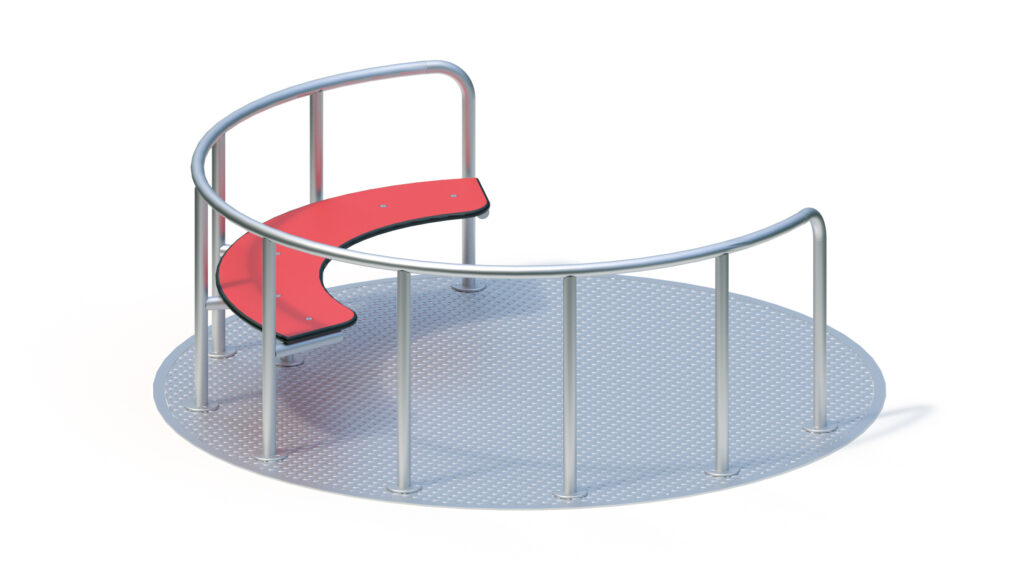

Roundabout (1,50 m) - Kaiser & Kühne

Age group ? The specific age group for which the product was developed.

3+
Number of users ? The number of individuals who can use the product simultaneously.

8
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

motion activity
Product groups ? The categories of similar products.

Carousels, Carousels

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

1,55 m

Total width ? The measurement indicating the width of the playground equipment.

1,55 m

Total height ? The measurement indicating the height of the playground equipment.

0,85 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

5,55 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

5,55 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

0,85 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

1 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

165,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

170,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

0,20 m

Platform heights

-

Foundations

1 pc.

0,60 x 0,60 x 0,40 m
Volume: 0,14 m3

Classic

Variants finder

Classic

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Area: Ø 1,55 m
Minimum space: Ø 5,55 m
Total height: 0,85 m
Rotating floor and upright: profiled stainless steel sheet/stainless steel
Roller bearing: finger proof and mud protected
Anchoring of the roundabout is with a separate flanged ring to be set in concrete.

Foundations (on site)
1 pcs. 0,60 x 0,60 x 0,40 m

Installation time
2 men 1 hrs. each
(without foundation work)

Free Height of Fall
0,20 m

Please note
The soil characteristics of the impact area surrounding the equipment must have an appropriate level of shock absorption corresponding to a free height of fall of at least 600 mm (according to EN 1176-5).

Designed for
Children aged 4 years or older
