Rotating Platforms

Rotating plate (0,45) 0-43125-001

Age group ? The specific age group for which the product was developed.

3+
Number of users ? The number of individuals who can use the product simultaneously.

1
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

motion activity
Product groups ? The categories of similar products.

Rotating Platforms

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

Total length ? The measurement indicating the length of the playground equipment.

0,49 m

Total width ? The measurement indicating the width of the playground equipment.

0,49 m

Total height ? The measurement indicating the height of the playground equipment.

0,53 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

3,49 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

3,49 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

0,53 m

Number of installers ? The number of qualified individuals required for product assembly.

1 Person

Assembly time ? The time required by qualified individuals to assemble the product.

1 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

35,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

40,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

0,53 m

Platform heights

Foundations

1 pc.

0,50 x 0,50 x 0,50 m
Volume: 0,13 m3

Galerie

Kaktus

Arktis

Atlantik

Kaffeebohne

Saphir

Schneeweiß

Tiefschwarz

Mohn

Sonne

Zitrone

Wald

Nebel

Zuckermais

Aprikose

Kiesel

Fjord

Basar

Zinn

Weide

Patina

Hochland

MohnPLUS

Variants finder

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data
Area: Ø 0,49 m
Minimum space: Ø 3,49 m (10 m²)
Total height: 0,54 m
Weight: 35 kg heaviest single component
40 kg as a whole

– rotating plate: stainless steel/High pressure laminate 15 mm
– tamper-proof, dirt-protected roller bearing
– ring-shaped flange anchorage

Foundation
1 pc. 0,50 x 0,50 x 0,50 m
concrete amount: 0,13 cbm

Approximate assembly values
1 mechanic 1 hour
(without creating foundation)

Free height of fall
0,53 m

Please note:
The soil characteristics of the impact area surrounding the equipment must have an appropriate level of shock absorption corresponding to a free height of fall of at least 600 mm (according to EN 1176-5).

Appropriate for
children from the age of 3 years up,
public playgrounds etc.,
physical activity

Rotating Platforms

Galerie

Kaktus

Arktis

Atlantik

Kaffeebohne

Saphir

Schneeweiß

Tiefschwarz

Mohn

Sonne

Zitrone

Wald

Nebel

Zuckermais

Aprikose

Kiesel

Fjord

Basar

Zinn

Weide

Patina

Hochland

MohnPLUS

Variants finder

Selected variant:

This kaiser & kühne product enables:

Product downloads:

For more information please contact us

Related products:

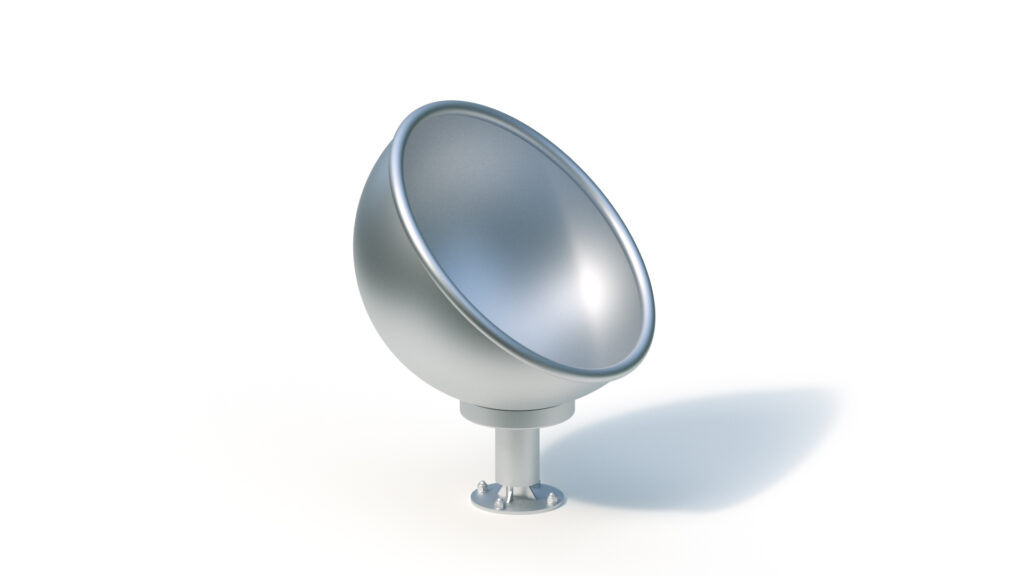

Rotating bowl 0-43200-000
