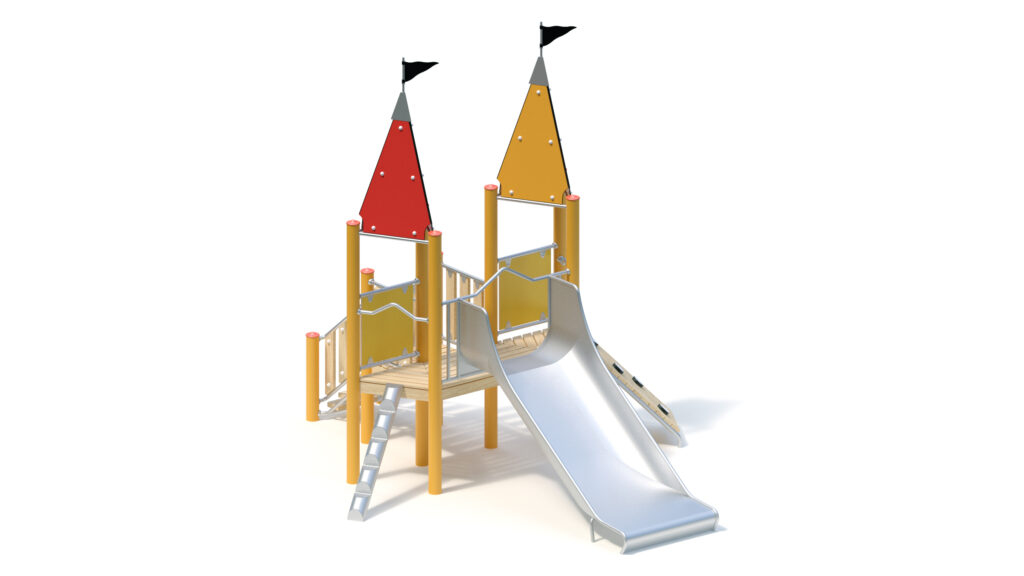

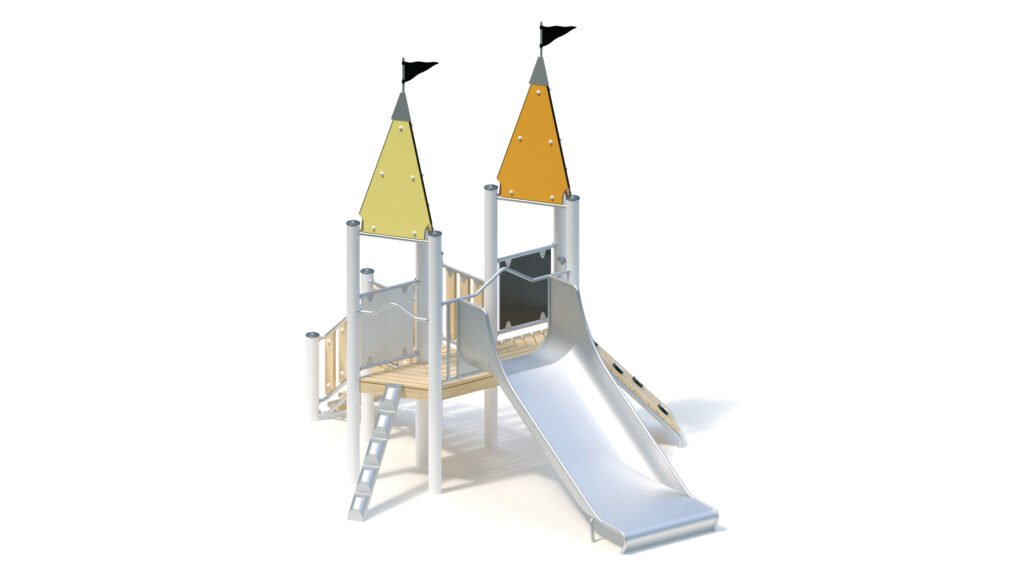

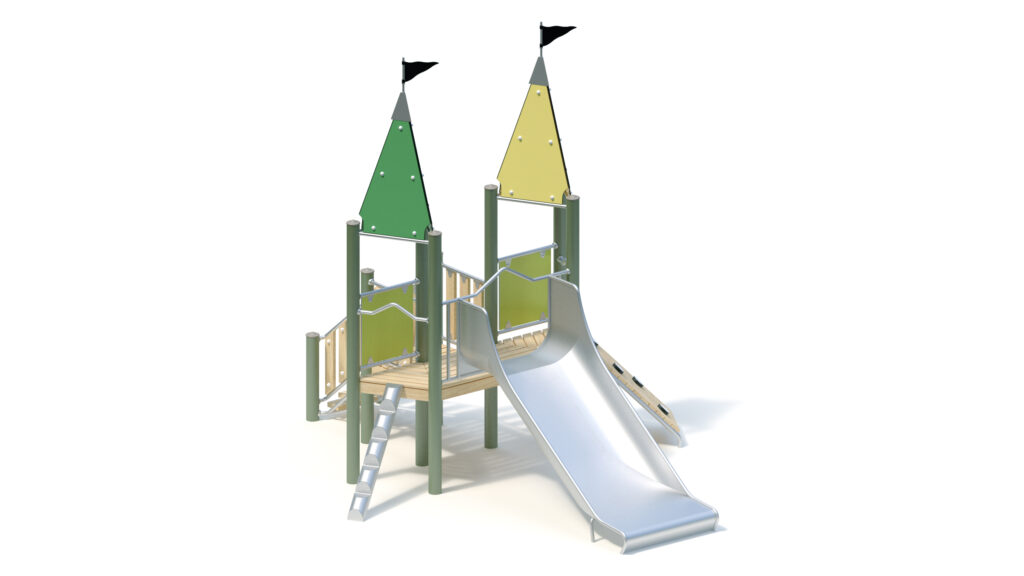

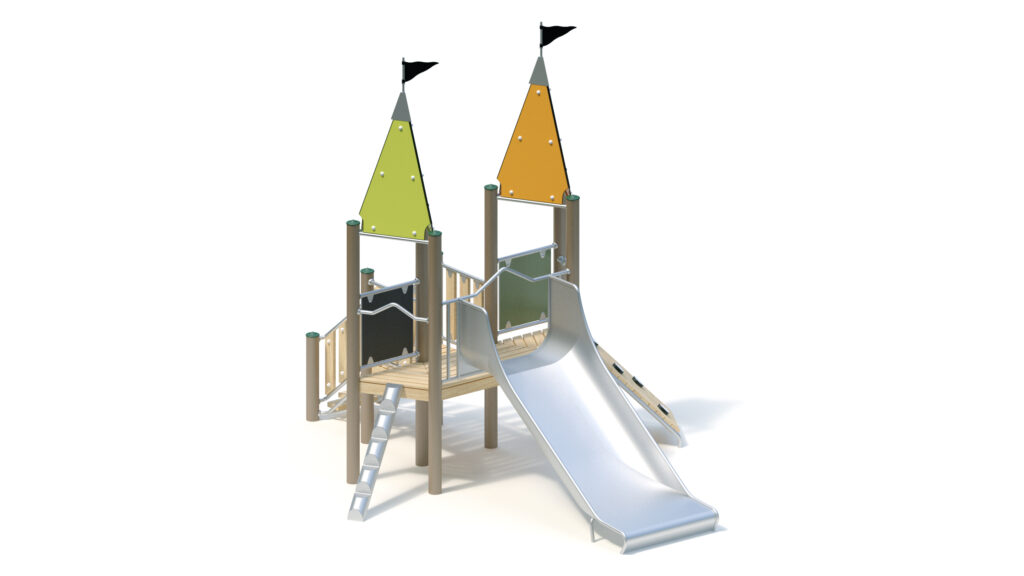

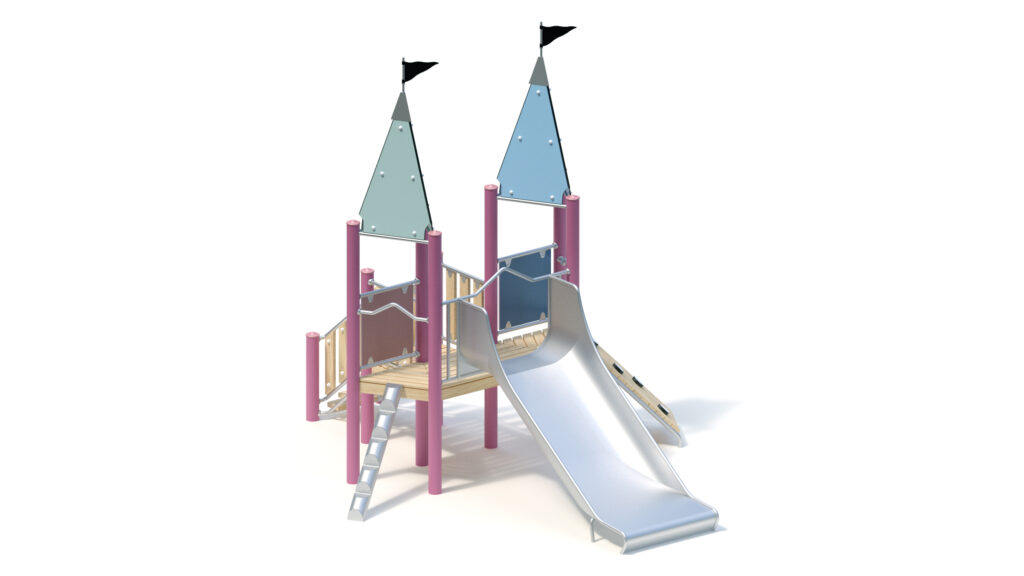

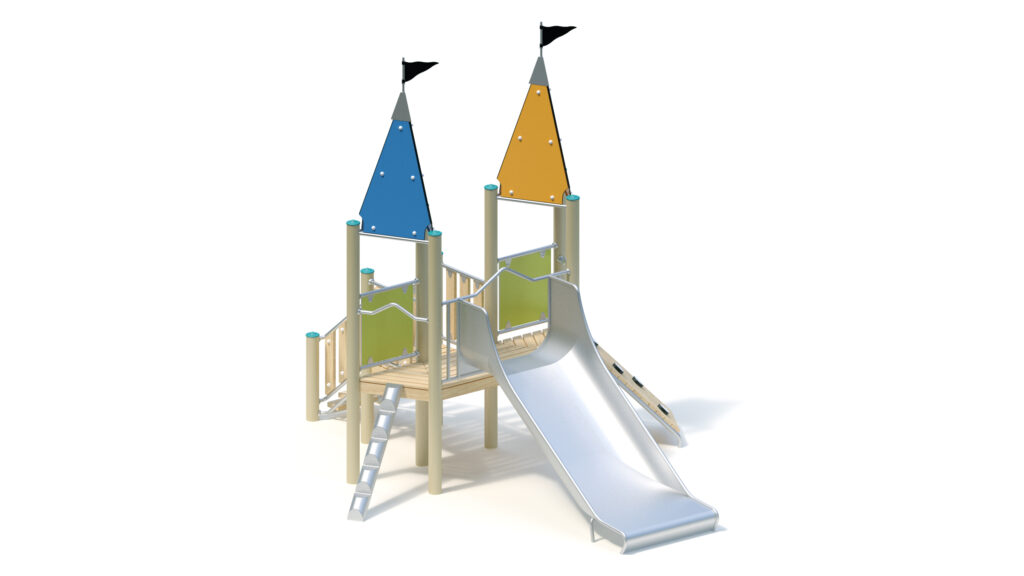

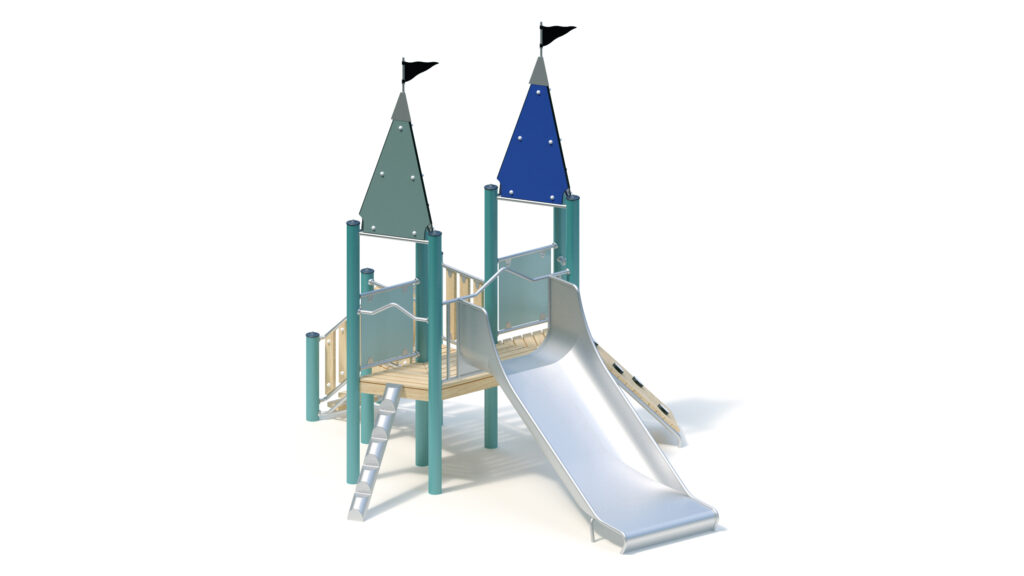

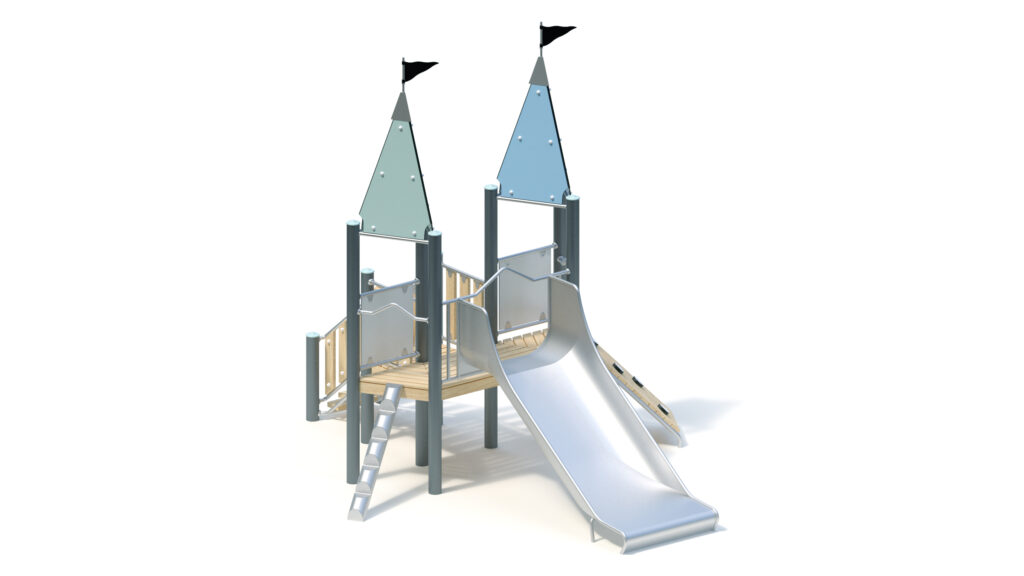

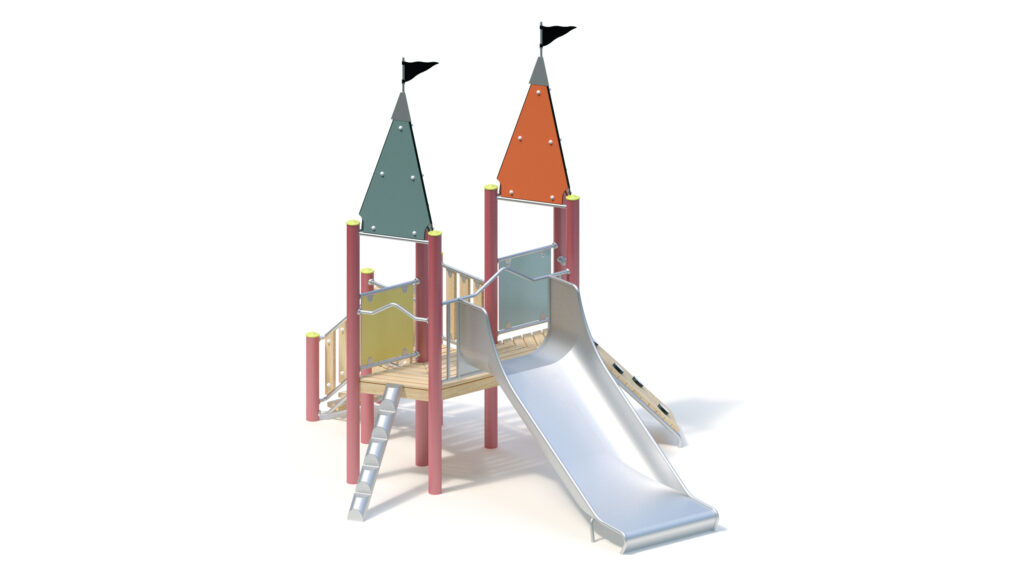

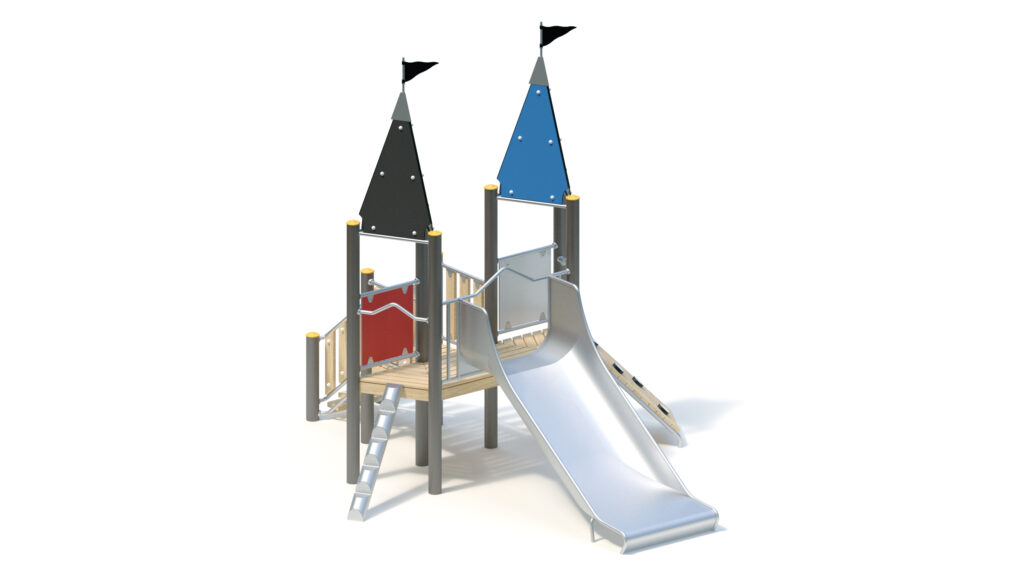

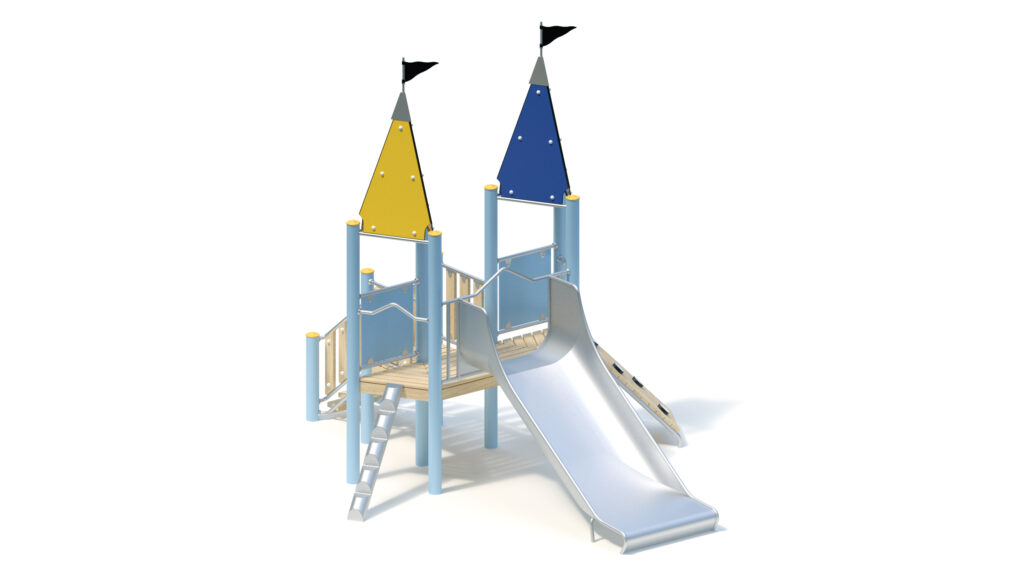

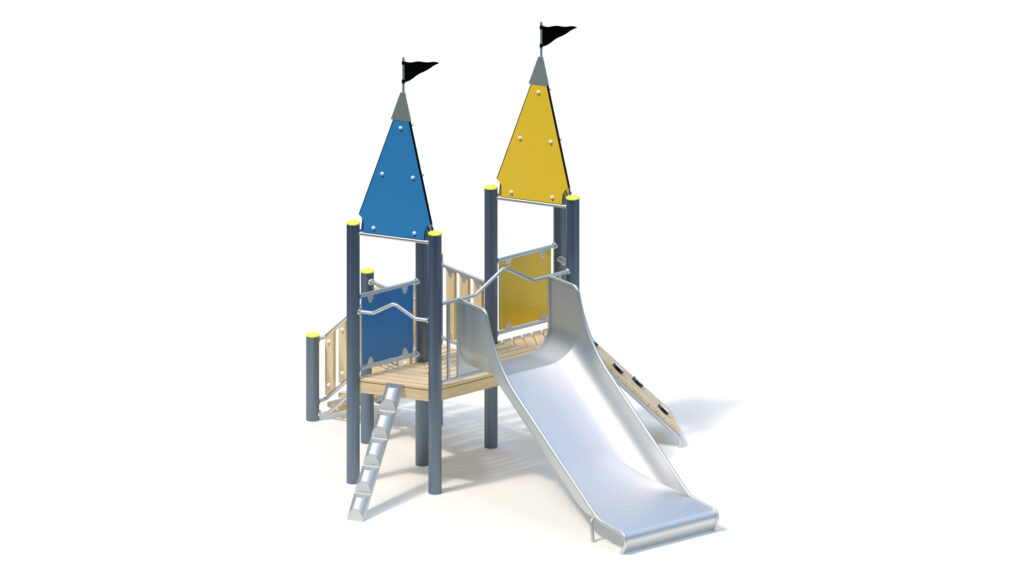

Play structure 0-21260-503

Classic

Jungle

Aloha

Beach

City

Coral

Ice Palace

Mermaid

Nature

Ocean

Pirate

Safari

Sky

Sun

Sunny Day

Sweden

Technical data
Total height: 4,06 m
Area: 3,92 x 4,82 m
Minimum space: 6,93 x 8,31 m (37 m²)
Platform heights: 0,80 m / 1,00 m
Slide installation height: 1,00 m
Slide entrance height: 1,10 m
Weight: 110 kg heaviest single component
745 kg as a whole

Posts
Posts made from stainless steel tubes Ø 12 cm covered by non-detachable protective stainless steel caps.

Platforms
Platforms from boards of 30 mm thickness and all-round square-shaped joists 45 x 100 mm. Dried timber from Robinia, planed, milled and free from decay. Force-fitting fastening through specific stainless steel brackets with end-to-end bolt assembly.

Attachment parts
– stairs with steps made from Robinia 170 x 45 mm, installed on a stainless steel frame Ø 33,7 x 2 mm, step rise 133 mm
– pair of infill barriers for the stairs made from Robinia, installed between stainless steel tubes, Ø 33,7 x 2 mm
– Robinia climp up ramp with attached climbing elements made from HPL
– bowed guardrails with roll-off prevention, from stainless steel tubes, Ø 33,7 x 2 mm
– Robinia infill barrier, 125 x 30 mm, installed between stainless steel tubes Ø 33,7 x 2 mm
– highly weather-resistant yellow infill panel made from HPL, installed between stainless steel tubes Ø 33,7 x 2 mm
– tower roof, inclination 80°, made from highly weather-resistant blue HPL, 13 mm thickness
– corrugated red flag including flagpole
– stainless steel climbing post Ø 159 x 3 mm, step surfacing from profiled stainless sheet steel
– attachment slide, width 1,10 m, one-piece welded assembly, stainless steel sheet thickness: 2,5 mm, with roll-off prevention above the entrance section

For your planning, due to a possible sliding surface heating, please see to a north-east orientation of the slides or provide half-shade of trees.

Robinia timber is furnished with water-repellent, breathable protective coating. Besides protection from moisture, that treatment reduces crack formation. Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to screws with security socket.

Foundations (on site)
10 pcs. 0,40 x 0,40 x 0,40 m
1 pc. 0,40 x 1,25 x 0,40 m
3 pcs. 0,30 x 0,30 x 0,40 m
concrete amount: 0,9 m³

Approximate assembly values
2 mechanics 7 hours each
(without creating foundations)

Free height of fall
1,10 m

Appropriate for
children from the age of 3 years up,
public playgrounds etc.,
physical activity
