Creative Equipment

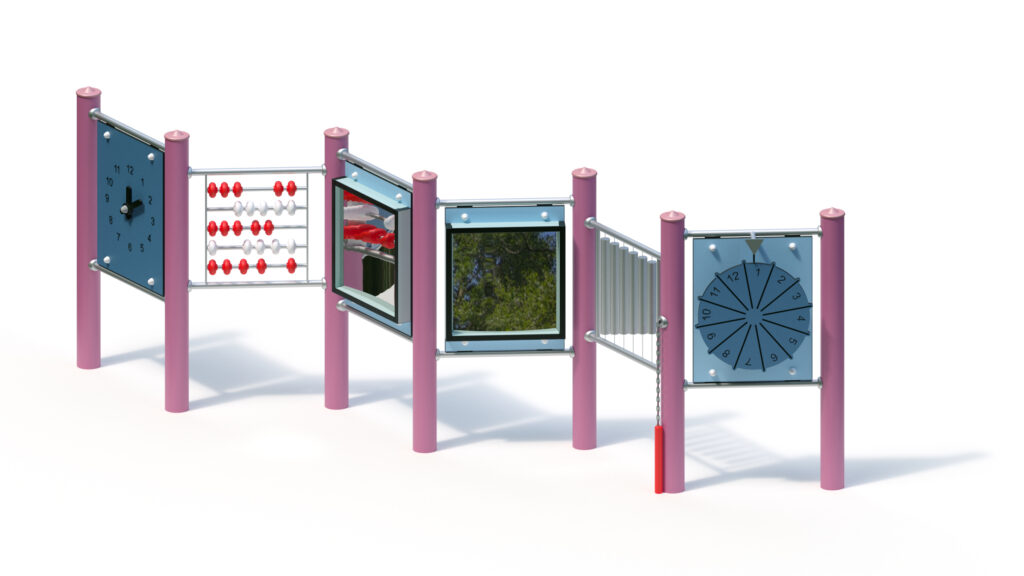

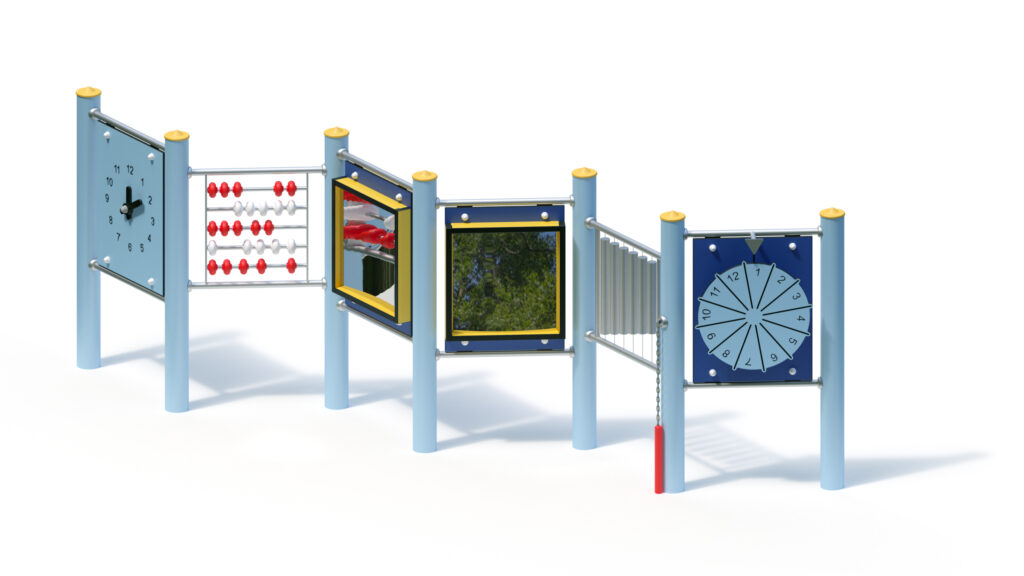

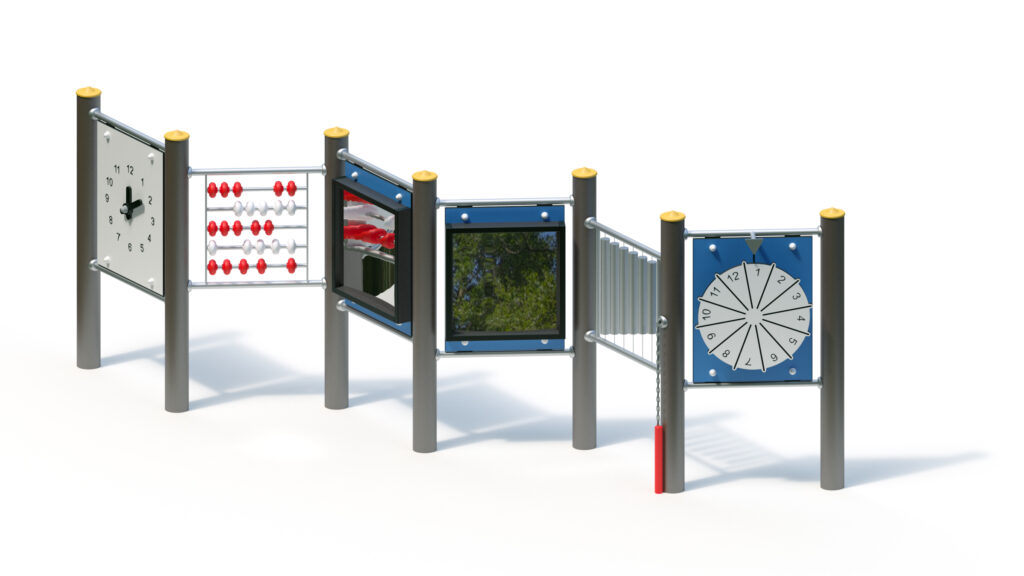

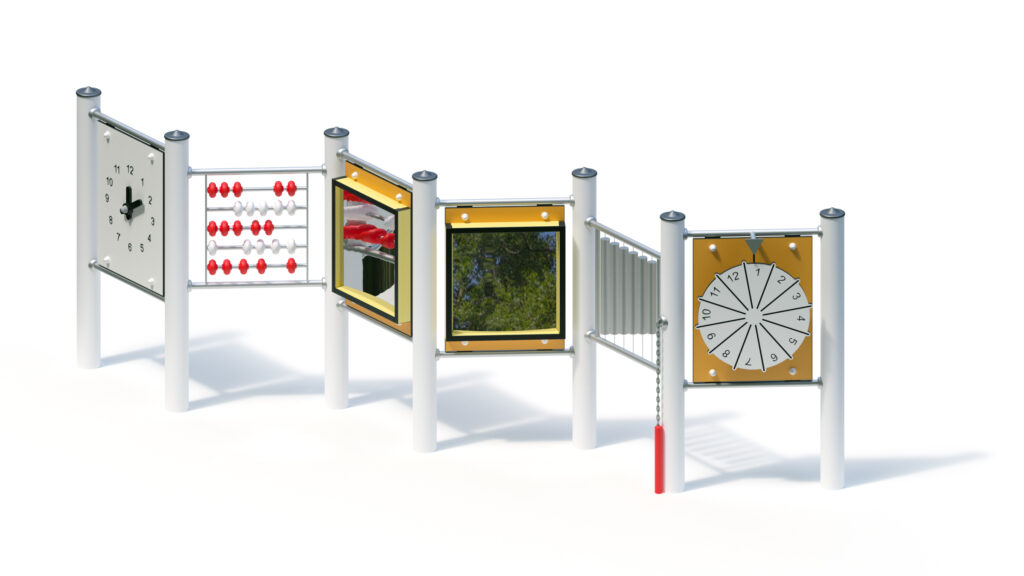

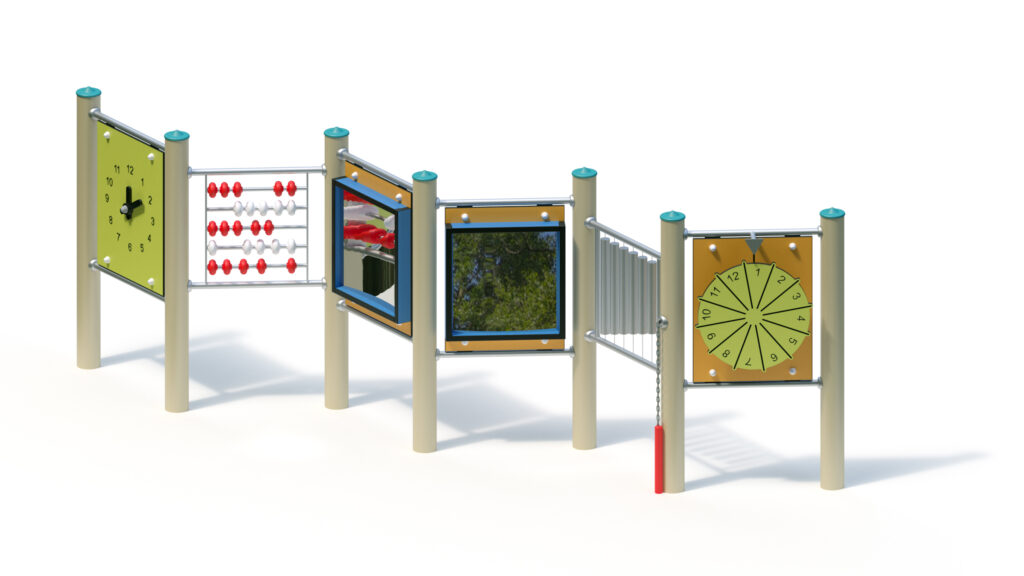

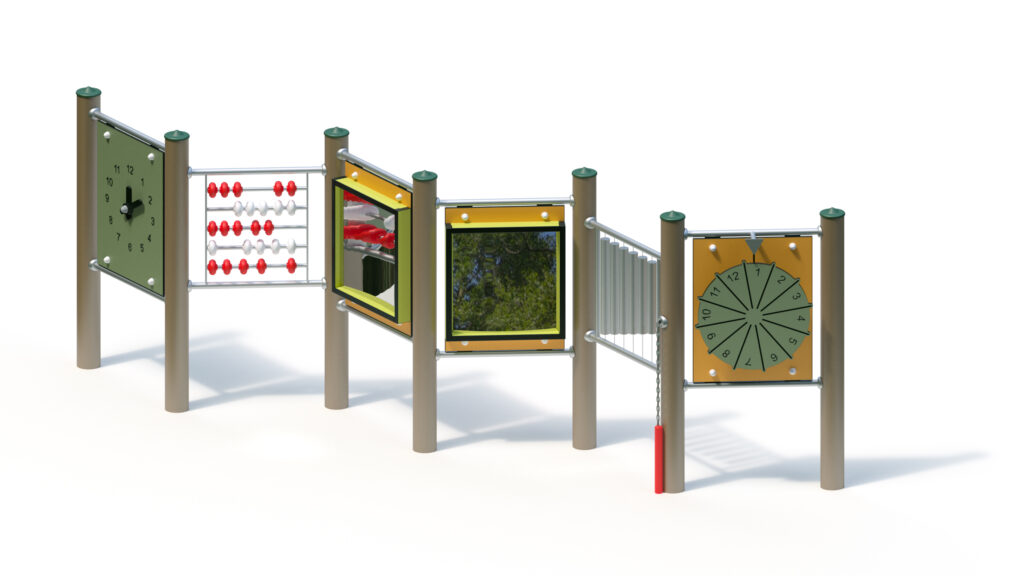

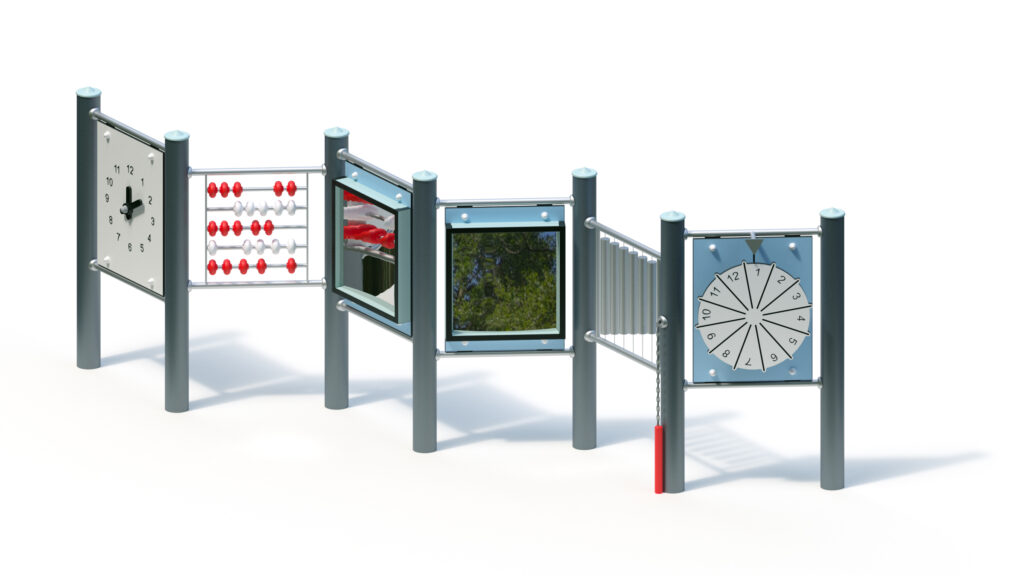

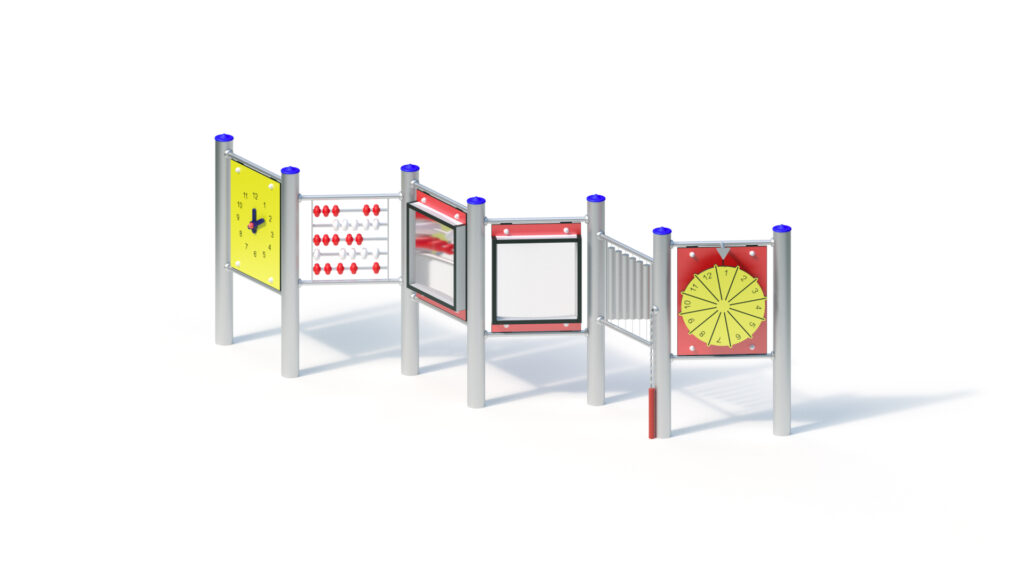

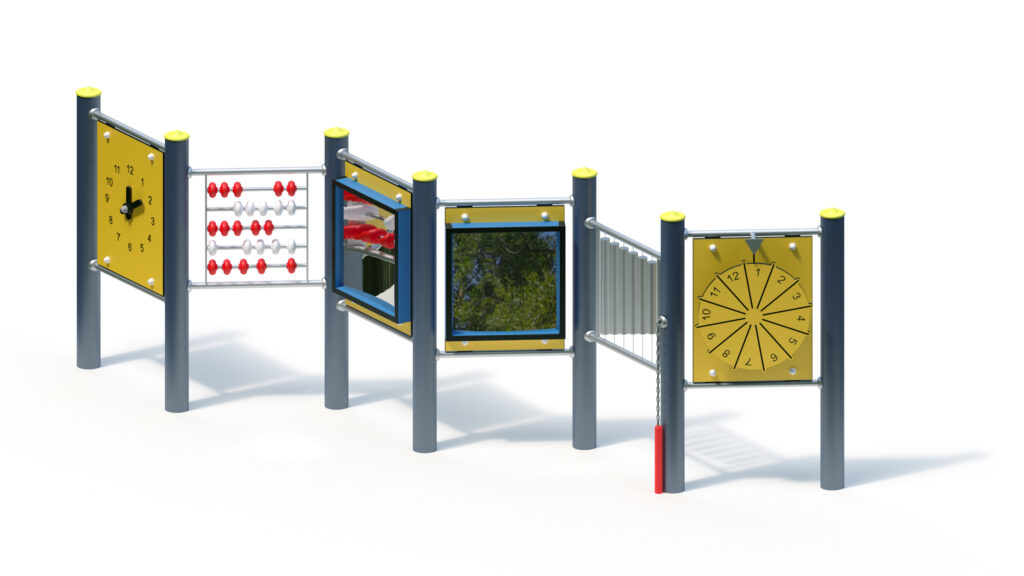

Leporello 0-37214-700

Age group ? The specific age group for which the product was developed.

2+
Number of users ? The number of individuals who can use the product simultaneously.

12
Area of use ? The different environments or situations in which the product can be used.

public playgrounds
Activities ? The various tasks or actions that can be performed with the product.

manual activity
Product groups ? The categories of similar products.

Creative Equipment

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

Total length ? The measurement indicating the length of the playground equipment.

4,15 m

Total width ? The measurement indicating the width of the playground equipment.

0,50 m

Total height ? The measurement indicating the height of the playground equipment.

1,50 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

7,30 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

3,55 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

1,50 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

2 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

40,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

310,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

No specification

Platform heights

Foundations

7 pcs.

0,40 x 0,40 x 0,60 m
Volume: 0,10 m3

Classic

Ocean

Aloha

Beach

City

Coral

Ice Palace

Jungle

Mermaid

Nature

Pirate

Safari

Sky

Sun

Sunny Day

Sweden

Variants finder

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data
Total height: 1,50 m
Area: 0,50 x 4,15 m
Minimum space: 3,55 x 7,30 x 1,50 m (24 m²)

Posts
Laminated Robinia timber Ø 120 mm with cylindrical milling. End-grain surfaces are covered by non-detachable protective stainless steel caps. Stainless steel tubular pedestal for concrete-cast foundation and for fixed mounting to round Robinia posts, Ø 120 mm, below playing surface.

Attachment parts
– infill panel made from a coloured highly weather-resistant HPL panel, framed by stainless steel tubes Ø 33,7×2 mm, with clock hands for manual time adjustment made from coloured HPL panels
– concave/convex mirror from high-polished stainless steel framed by HPL panels
– wheel of fortune made from HPL panel
– abacus: elements from Polyamide resp. from PVC, Ø 80 mm
– tubular stainless steel chimes suspended from wire ropes, framed by stainless steel tubes Ø 33,7×2 mm. PVC drumstick included, suspended from the post by means of a chainless steel chain

Metal components: stainless steel
Robinia timber is furnished with water-repellent, breathable protective coating. Besides protection from moisture, that treatment reduces crack formation. Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to protective screw caps.

Foundations (on site)
7 pcs. 0,40 x 0,40 x 0,60 m
concrete amount: 0,67 m³

Approximate assembly values
2 mechanics 2 hours each
(without creating foundations)

Appropriate for
users of all ages,
public playgrounds etc.,
