Ladder wall and chin-up-bar exerciser (0,80 m)

Age group ? The specific age group for which the product was developed.

14+
Number of users ? The number of individuals who can use the product simultaneously.

4
Product groups ? The categories of similar products.

Fitness Equipment

Technical specifications

Lifting device ? Appropriate hoisting equipment is necessary for assembling the playground equipment.

-

Total length ? The measurement indicating the length of the playground equipment.

2,92 m

Total width ? The measurement indicating the width of the playground equipment.

0,12 m

Total height ? The measurement indicating the height of the playground equipment.

2,25 m

Minimum space length ? The minimum required length for the space where the playground equipment will be placed.

5,92 m

Minimum space width ? The minimum required width for the space where the playground equipment will be placed.

4,10 m

Minimum space height ? The minimum required height for the space where the playground equipment will be placed.

2,25 m

Number of installers ? The number of qualified individuals required for product assembly.

2 Pers.

Assembly time ? The time required by qualified individuals to assemble the product.

1 h

Heaviest single piece ? The weight of the heaviest component of the product. This information is crucial for transportation and assembly.

35,00 kg

(Total) Weight ? The total weight of the product. This information is essential for transportation and assembly.

105,00 kg

Free height of fall ? The maximum free fall height of the product, from which the required impact-absorbing surfaces, impact area size, and fall protection requirements can be derived according to (DIN) EN 1176-1:2017.

2,22 m

Platform heights

-

Foundations

2 pcs.

1,40 x 0,50 x 0,60 m
Volume: 0,42 m3

1 pc.

1,00 x 0,30 x 0,30 m
Volume: 0,09 m3

posts sky-blue/RAL 5015

Variants finder

posts sky-blue/RAL 5015

Selected variant:

Please indicate the following variant number when placing your order:

Make contact

This kaiser & kühne product enables:

Product downloads:

Technical data
Area: 0,12 x 2,92 m
Minimum space: 4,12 x 5,92 m
Rung spacing: 0,40 m
Total height: 2,25 m
Weight: 35 kg heaviest single component
105 kg as a whole

Posts: tubular steel Ø 121 x 4 mm, hot-dip galvanised, powder-coating on choice according to RAL colour chart (except luminous or glimmer colours)
Metal components: stainless steel

Please note
The device is optionally available as permanently installed public playground equipment (certified according to EN 1176) or as permanently installed outdoor fitness equipment (certified according to EN 16630).

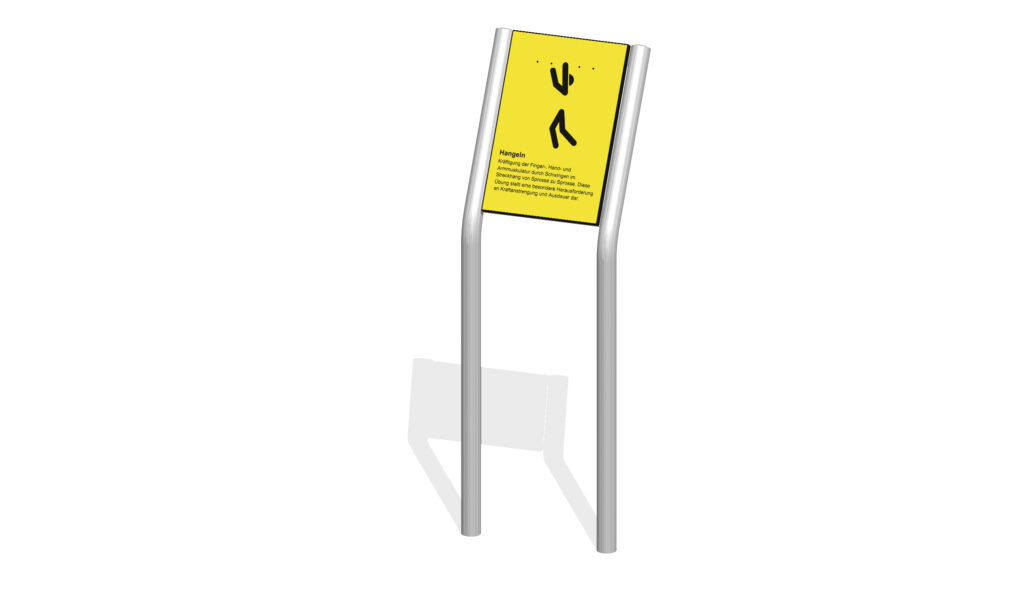

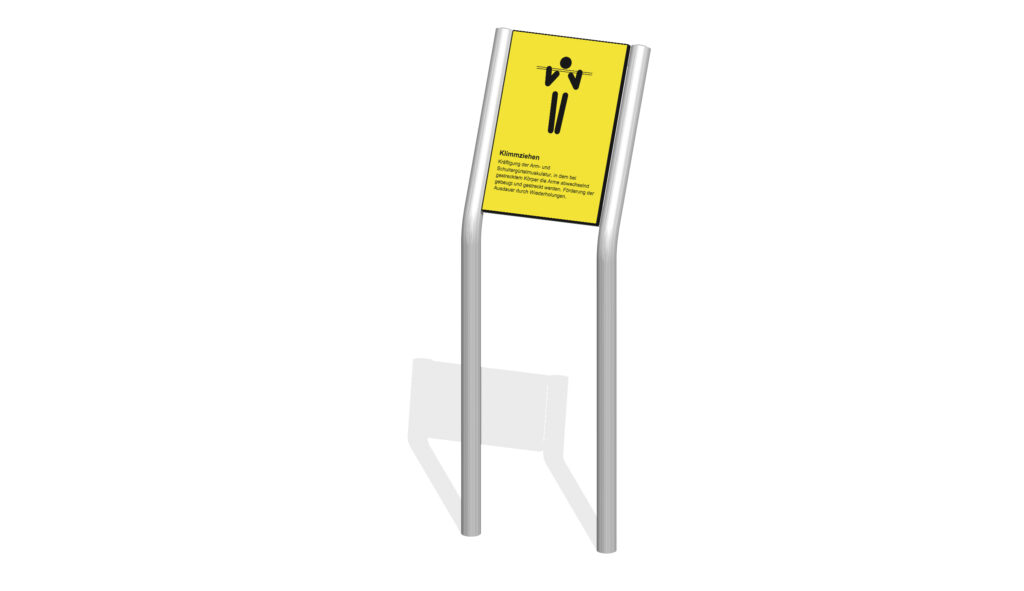

If it is placed as fitness equipment, information on function and safety must be provided in close proximity. This can be done by means of an optionally available station signboard.

Foundations (on site)
1 pc. 1,00 x 0,30 x 0,30 m
2 pcs. 1,40 x 0,50 x 0,60 m

Approximate assembly values
2 mechanics 1 hour each
(without creating foundations)

Free height of fall
2,22 m

Appropriate for
Adults
Exercise trails etc.
Physical activity

Fitness Equipment
