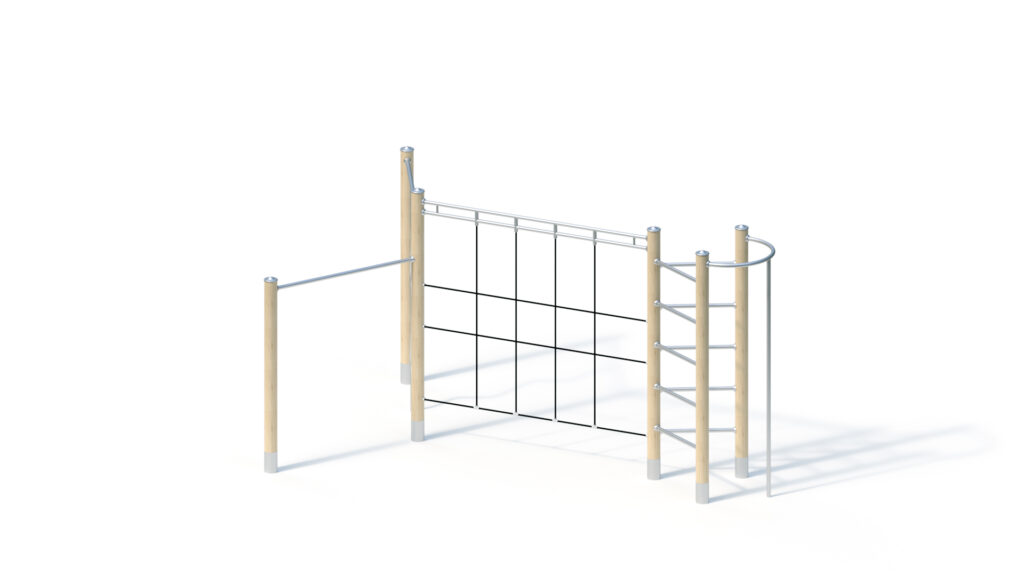

Climbing Structures

Technical data
Area: 3,00 x 4,15 m
Minimum space: 6,00 x 7,45 m (39 m²)
Total height: 2,65 m
Platform height: 1,20/1,40 m
Weight: 60 kg heaviest single component
460 kg as a whole

Posts
Laminated Robinia timber Ø 120 mm with cylindrical milling. End-grain surfaces are covered by non-detachable protective stainless steel caps. Stainless steel tubular pedestal for concrete-cast foundation and for fixed mounting to round Robinia posts, Ø 120 mm, below playing surface.

Platforms
Platforms from boards of 30 mm thickness and all-round square-shaped joists 45 x 100 mm. Dried timber from Robinia, planed, milled and free from decay. Force-fitting fastening through specific stainless steel brackets with end-to-end bolt assembly.

Attachment parts
– bowed guardrail with roll-off prevention, from stainless steel tubes, Ø 33,7 x 2 mm
– tandem guardrail from stainless steel tubes, Ø 33,7 x 2 mm
– vertical climbing pole from stainless steel tube Ø 38 x 2 mm
– arch-shaped ladder from stainless steel tubes
– climbing net from Hercules ropes suspended from stainless steel tandem railing
– climb up ramp from Robinia fitted with climbing elements made from HPL
– frameless climbing wall from a highly weather-resistant HPL panel and freeclimbing elements on one side

Metal components: stainless steel
Thanks to a specific fastening adaptor, forces arising from the modular attachment parts are directly derived into the posts. Tamper-proof connections thanks to protective screws caps.

Foundations (on site)
8 pcs. 0,40 x 0,40 x 0,40 m
5 pcs. 0,30 x 0,30 x 0,40 m
concrete amount: 0,69 m³

Approximate assembly values
2 mechanics 6 hours each
(without creating foundations)

Free height of fall
2,20 m

Appropriate for
children from the age of 5 years up,
public playgrounds etc.,
physical activity
