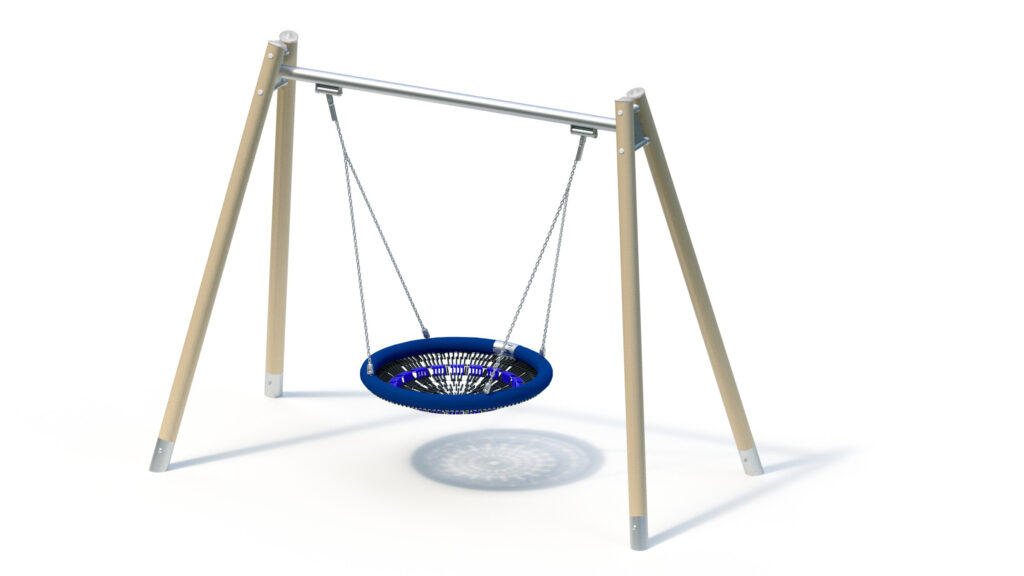

Swings

Technical data
Area: 1,81 x 3,65 m
Minimum space: 7,55 x 3,65 m (28 m²)
Impact area: 7,55 x 2,30 m (18 m²)
Swing height: 2,50 m
Weight: 40 kg heaviest single component
190 kg as a whole

– swing support posts made from laminated Robinia timber Ø 120 mm with cylindrical milling. End-grain surfaces are covered by non-detachable protective stainless steel caps
– stainless steel tubular pedestal for concrete-cast foundation and for fixed mounting to round Robinia posts, Ø 120 mm, below playing surface
– swing crossbeam from hot-dip galvanised steel, Ø 88,9 mm, wall thickness 3,2 mm; attachment to swing supports by means of connector plates
– hinged suspension link with crosswise friction bearing for chain mounting
– two-piece basket swing axle from stainless steel with ball bearings including an attachment device for swing seat retain to prevent from falling in case of a breakdown of the main attachment.
– specially constructed swivels and universal joints, designed for high dynamic basket swing loads
– trapezoid chain suspension consisting of stainless steel chains Ø 7 mm, with integrated roller bearing swivels preventing chain knotting
– chain attachment to swing axle and basket swing seat by clamping adaptors made from stainless steel
– swing basket with all around shock absorption by means of PUR foam, and blue PE cord sheathing Ø 20 mm; basket ring Ø 0,95 m from stainless steel tube Ø 38 mm, wall thickness 2 mm; basket consisting of blue and black plastic links with steel rope connection. Maximum acceleration amounts to 50g (certified by the German TÜV). According to DIN EN 1176-2, the limit value is at 120g. The surface pressure amounts to 79,6 N/cm² (certified by the German TÜV). The limit value is at 90N/cm².

maximum load capacity: 400 kg
(corresponding to a number of 7 children up to the age of 14 years)

Foundations (on site)
4 pcs. 0,85 x 0,85 x 0,40 m
concrete amount: 1,2 m³

Approximate assembly values
2 mechanics 2 hours each
(without creating foundations)

Free height of fall
1,59 m

Appropriate for
children from the age of 3 years up,
public playgrounds etc.,
physical activity
